High oil rate waste plastic pyrolysis oil plant

Pyrolysis plant

Henan Doing produced waste plastic pyrolysis oil plant ,as a pyrolysis plant manfactures and suppliers,we prodviced new technology pyrolysis plant .The pyrolysis plant for recycling waste palstic and convert waste plastic to fuel oil and carbon black.

Chat Online Leave A Message

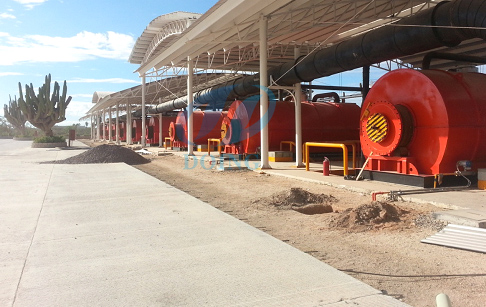

plastic pyrolysis plant
Waste plastic to oil
Billions of wastages are available all over the world. We can’t burn or landfill that Waste Plastic due to pollution problems. There is no any other use of this waste Plastic. So, we at Doing group  have found a solution for this wastage Plastic. We separate all content from wastage Plastic and make it complete renewable process.
plastic to oil plant
High oil rate waste plastic pyrolysis oil plant
Henan Doing produced waste plastic pyrolysis oil plant ,as a pyrolysis plant manfactures and suppliers,we prodviced new technology pyrolysis plant .The pyrolysis plant for recycling waste palstic and convert waste plastic to fuel oil and carbon black.



Waste plastic pyrolysis to oil plant working process:
pyrolysis plant
Waste plastic pyrolysis to oil plant working process

Feed waste plastic into the reactor with auto-feeder, seal the reactor gate and begin to heat the reactor by burning fuel materials in the combustion system, the fuel material can be coal, wood, natural gas and fuel oil. There is a thermocouple installed at the oil gas outlet valve to test the temperature of the oil gas, when thermocouple shows a certain temperature, the oil gas will come out and flow into the cooling system and be converted into liquid oil. At the same time, the oil gas conations CH4, C2H6, C3H8, C4H10 and H2 which cannot be cooled under normal pressure will be recycled back to combustion system to burn as fuel material. The dust and sulfur gas will be removed by the dust removing system. After the gas oil run out, there are slags (carbon black) inside of the reactor,.

As a plastic pyrolysis plant manufacturer-DOING will provide customer a good quality machine with adopt fully automatic vacuum carbon black discharging system that extend the service time.
Choosing the suitable raw material is important for customers, it concerns the real profit you can get from your material. Not all kinds of waste plastic can get oil, if you want to get crude fuel oil with high oil yield from waste plastic, please refer to the following form: Here I need to stress that the oil rate only for your reference, as different plastic different result, such as some plastic has very dirty slag, and the plastic is very wet. Let’s see it:

Oil rate from different kinds of plastic:


PVC material with very little oil, not good
PE 95%
PP 90%
PS 90%
ABS 40%
Pure white plastic cloth 70%
Plastic package 40%
Plastic logo 20%
Paper coating dry material 60%, wet 15%-20%
Household garbage 30% - 50%
Pure plastic cable covers 80%
Clean plastic bag more than 50%

High oil rate waste plastic pyrolysis oil plant  technical data

Technical parameter of  waste plastic pyrolysis oil plant
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste plastic Waste plastic Waste plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about  waste plastic pyrolysis oil plant
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m



High oil rate waste plastic pyrolysis oil plant final product application

Fuel oil
pyrolysis plant
Fuel oil application
This oil product is a kind of crude fuel oil, which can be used for industrial heating used in any fuel needed industrial factories, such as cement plant, steel mill, glass factory, brick factory, boiler used factory, etc.  Or can be refined to diesel, directly used in diesel burners, generators, heavy trucks, agricultural machinery,  and mix with normal diesel used for cars.

Carbon black
plastic to oil
Carbon black application
Carbon black produced from this system is crude powdery material, which can be directly sold to cement factory mix with cement. Or made into briquettes used for heating, just like coal. Or grinded into fine powder used for making paint and printing ink.
