Doing group produced waste plastic to fuel oil pyrolysis plant with lower cost and higher fuel oil output can convert waste plastic to fuel oil ,carbon black .

Waste plastic to fuel oil pyrolysis plant

What is pyrolysis:

Pyro = heat. Lysis = break down.

Pyrolysis is chemical reaction. This reaction involves molecular breakdown of larger molecules into smaller molecules in presence of heat. Pyrolysis is also known as thermal cracking, cracking, thermolysis, depolymerization, etc.

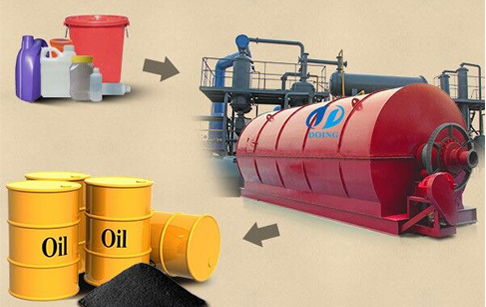

Waste plastic to fuel oil pyrolysis plant working process

Plastic pyrolysis involves subjecting plastic to high temperature of 400 to 450 degree Celsius, in absence of oxygen. In case of oxygen is present plastic will start burning.

During pyrolysis plastic breaks down into smaller molecules of pyrolysis oil, pyrolysis gas and carbon black. Pyrolysis is great a way of recycling waste plastics. This waste plastic to fuel oil pyrolysis plant can also used for waste tire recycling.

Waste plastic to fuel oil pyrolysis plant feature

Waste plastic to fuel oil pyrolysis plant feature

1.Whole plastic feed, no need to break, which reduces cost.
Adopt multilevel cooling circulation to get more fuel oil.
2. Discharge process through pulse dust removal processing, no dust emissions.
3. Easy operation, high efficiency and 2-3 people to operate.
4.Waste plastic to fuel oil pyrolysis plant adopts fully automatic submerged arc welding process, through x-ray detection, to improve the security of plant.

Features
Technical Data
Application

Waste plastic to fuel oil pyrolysis plant technical data

Technical parameter of Waste plastic to fuel oil pyrolysis plant
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste plastic	Waste plastic	Waste plastic
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about Waste plastic to fuel oil pyrolysis plant
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Features
Technical Data
Application

Waste plastic to fuel oil pyrolysis plant final application

waste plastic pyrolysis to fuel oil machine

Waste plastic to fuel oil pyrolysis plant final application

Fuel oil from waste plastic are used in below industries
A.power plant factory
B.glass factory
C.cement factory
D.ceramic fatory
E.aluminum factory
F.boiler factory
G.central heating factory
H.painting factory
1.A. Waste plastics, Used bottles,used tyres, used bags, farming waste , other
B.Medical waste
C.oil sludge , waste oil ,black oil ,oily solid
D.other living waste
