Waste tyre pyrolysis to oil plant

Pyrolysis plant

Waste tyre pyrolysis plant to oil technology is mainly to convert the waste plastic/tyre to crude oil. Also called waste tyre recycling plant, waste tyre recycling machine, waste tyre and so on. Usually there are two machines used together. The waste tyre pyrolysis plant to oil can convert the waste plastic/tyre to tyre oil (also named plasticoil). Then the curde oil distillation machine will convert the crude oil (plasticoil, tireoil) into diesel oil. In this step the oil is of great quality can used directly for car, motor, and bus and so on. Among all the advantages the raw material of the waste tyre pyrolysis plant to oil is easily achieved and cheap. Thus making the equipment much profitable.

Chat Online Leave A Message
pyrolysis oil plant
Tyre pyrolysis oil


With the development of the whole society, more and more cars appear in our life, along with those, more and more waste tyres also appear. But how to deal with those waste tyres without pollution has been a problem
                                tyre to oiil plant                                                         Waste tyre pyrolysis to oil plant

Waste tyre pyrolysis plant to oil technology is mainly to convert the waste plastic/tyre to crude oil. Also called waste tyre recycling plant, waste tyre recycling machine, waste tyre and so on. Usually there are two machines used together. The waste tyre pyrolysis plant to oil can convert the waste plastic/tyre to tyre oil (also named plasticoil). Then the curde oil distillation machine will convert the crude oil (plasticoil, tireoil) into diesel oil. In this step the oil is of great quality can used directly for car, motor, and bus and so on. Among all the advantages the raw material of the waste tyre pyrolysis plant to oil is easily achieved and cheap. Thus making the equipment much profitable.

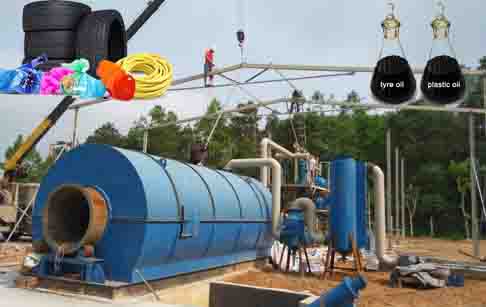

The waste tyre pyrolysis  to oil plant:
 tyre pyrolysis plant

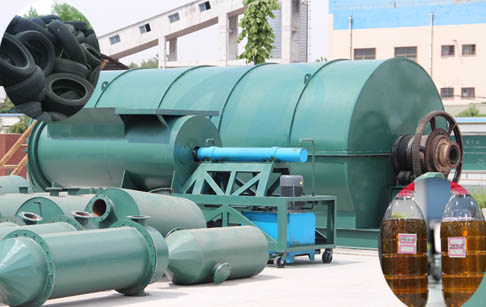

    Waste tyre pyrolysis to oil plant
This equipment heats the waste in a reactor which is made of Q245R.Indirect heating ensure the safety and the waste plastic or/tyre will vaporize the solid. The rubber is softened after which the rubber polymers continuously breakdown into small molecules. Then the vapors can be burned directly in the reactor, or it can be condensed into oily type liquid. Usually, it is called crude oil. During the conversation there are some vapors which cannot be condensed will be recycled to heat the reactor itself. It is energy saving. Well designed dedusting system ensures no pollution to the environment.

.


Waste tyre pyrolysis to oil plant technical parameter

Technical parameter of Waste tyre pyrolysis to oil plant
  Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste tyre ,waste rubber,waste plastic,
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

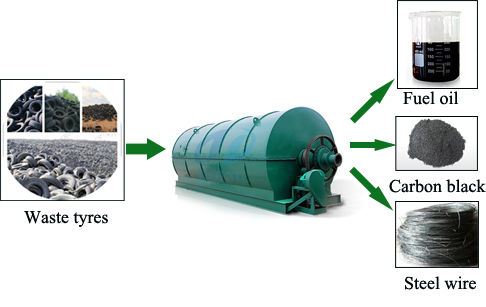

Waste tyre pyrolysis to oil plant final product

1. Fuel oil (45%-52%): Oil from waste tyre pyrolysis to oil plant can be used as industrial fuel for burning.

pyrolysis oil

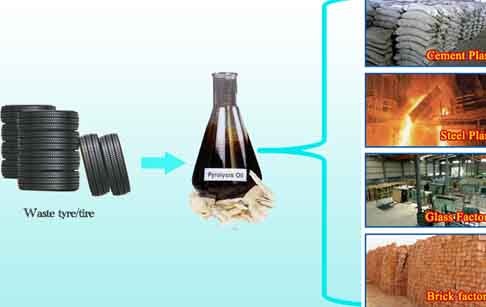

Fuel oil application



2. Carbon black (30%): First, Carbon black from waste tyre pyrolysis to oil plant is crude oil . You can sell it to the brick factory as internal combustion or to the factory which need it as raw materials, such as shoe, tire, cable and sealant companies. Second, could make further process, make carbon black powder into carbon black briquette, and use it for burning.
tyre pyrolysis oil plant
3. Steel wire (30%): It can be sold to the iron and steel company directly.
4. Waste gas (5%): we have a special design could recycling it into fire furnace for burning.
