5-50ton capacity crude oil to diesel distillation machine

Waste Oil Distillation

Our crude oil to diesel distillation machine adopts the latest technology called refining or distillation. The crude oil to diesel distillation machine can be operated in normal pressure condition and vacuum pressure condition. The distillation process refers to recycling the tyre/plastic pyrolysis oil into qualified diesel oil by removing all kinds of pollutants and making its performance indexes (density, viscosity, acid value) meet new oil’s data.

Chat Online Leave A Message
crude oil to diesel

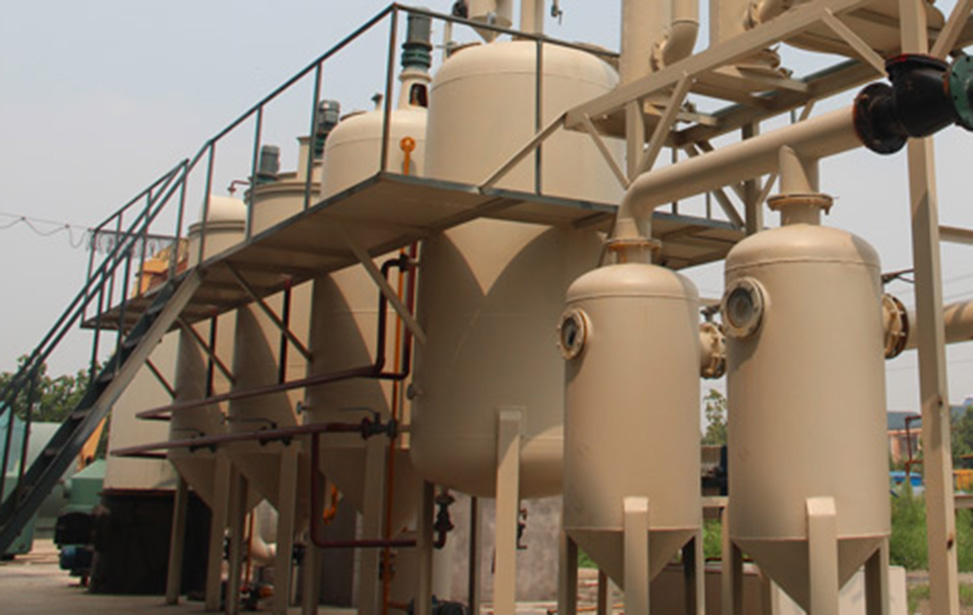

                                   Crude oil to diesel distillation machine
Our crude oil to diesel distillation machine adopts the latest technology called refining or distillation. The crude oil to diesel distillation machine  can be operated in normal pressure condition and vacuum pressure condition. The distillation process refers to recycling the tyre/plastic pyrolysis oil into qualified diesel oil by removing all kinds of pollutants and making its performance indexes (density, viscosity, acid value) meet new oil’s data.

 Our crude oil to diesel distillation machine is equipped with special de-coloration system which can help in restoring the transparent color of diesel oil successfully. These diesel oil can be widely used in more kinds of diesel engines and will produce less smoke and less noise than regular diesel fuel. You will surely benefit a lot from the end product.

crude oil to diesel distillation machine

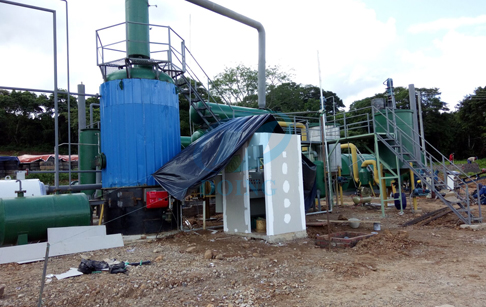

Crude oil to diesel distillation machine

Crude oil to diesel distillation machine process:
crude oil to diesel

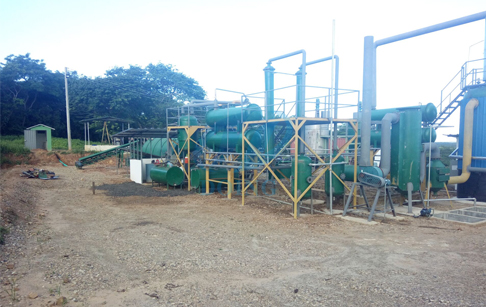

Crude oil to diesel distillation machine process
1. Pump the waste oil into reactor by oil pump.
2. Use coal/wood/natural gas/fuel oil/electricity heating the reactor.
3. After heating some time, the liquid oil will become oil gas, oil gas will be liquefied by the cooling pipe and condensers then will go into oil tank. Here we get mixed oil, or u can also call it fuel oil. If you wanna get a different quality diesel separately, through temperature control could separate it and collected into two different oil tanks.
4. Some gases (syngas) like Methane, Ethane, Propane, Butane, and Hydrogen cannot be liquefied under normal pressure and normal temperature will be recycled to fire furnace heating the reactor.
5. When use burning material heating the reactor, will produce some smoke. These smokes will go into our de-dusting system, the inside we design some high pressure nozzles, these nozzles will spraying some chemical water, the dust will be absorbed by the chemical water and flowing into the de-dusting pool. In the pool we will put some chemical which could remove the sulfur.
6. The exhaust gas will go into the chimney sucked by draft fan, when emission the exhaust gas will become steam, no pollution.
Crude oil to diesel distillation machine advantage

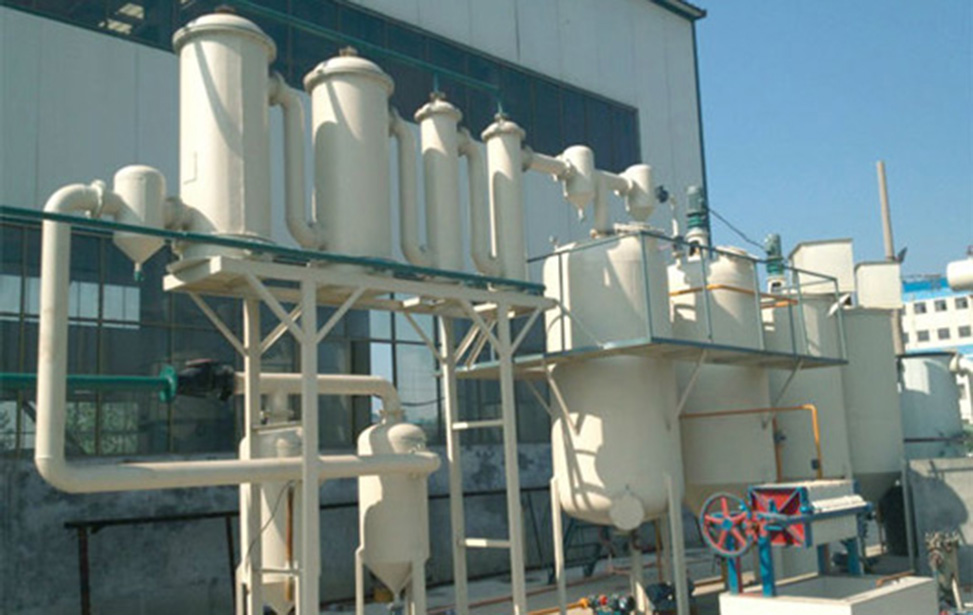

crude oil refining machine
3 D picture of crude oil to diesel distillation machine



Safe:

1. Hydroseal and vacuum system will prevent exhaust gas from going back to condensers and reactor.

2. Equipped with thermometer, pressure gauge, safety value and electric control system, the machine can avoid danger in the production process.

Environmental Protection:

1. In the dedusting system, three steps are used to dedust the hot smoke from reactor, which ensures the released gas is pollution-free.

2. The exhaust gas will be directly recycled for heating reactor, no gas pollution.

3. All parts are well-sealed, so air leakage can be avoided.

Technical parameter of  crude oil to diesel distillation machine
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material motor oil, waste tire crude oil, plastic crude oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡


crude oil by distillation appliaction
Crude oil to diesel distillation machine can purify waste tire oil, plastic oil; waste engine oil to diesel, the final product-diesel can be used for tractors, trucks, and diesel oil generators, ships etc.
