Waste tyre and plastic oil to diesel fuel distillation plant

Waste Oil Distillation

We obtain tyre oil and plastic oil from waste tyre/platic through waste tyre/plastic pyrolysis plant .In order to the tyre /plastic oil have more expensive applications ,higher prices and higher values ,now we have the latest waste tyre and waste plastic to diesel fuel distillaiton plant.

Chat Online Leave A Message
distillation plant

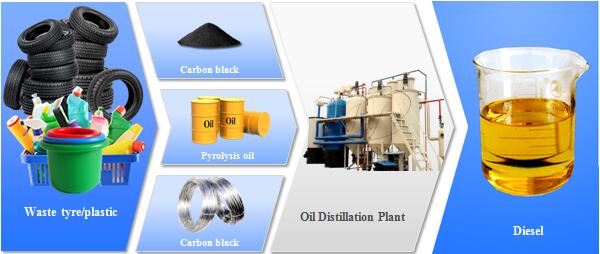

Waste tyre/plastic pyrolysis plant
We obtain tyre oil and plastic oil from waste tyre/platic through waste tyre/plastic pyrolysis plant .In order to the tyre /plastic oil have more expensive applications ,higher prices and higher values ,now we have the latest waste tyre and waste plastic to diesel  fuel distillaiton plant.
tyre oil to diesel

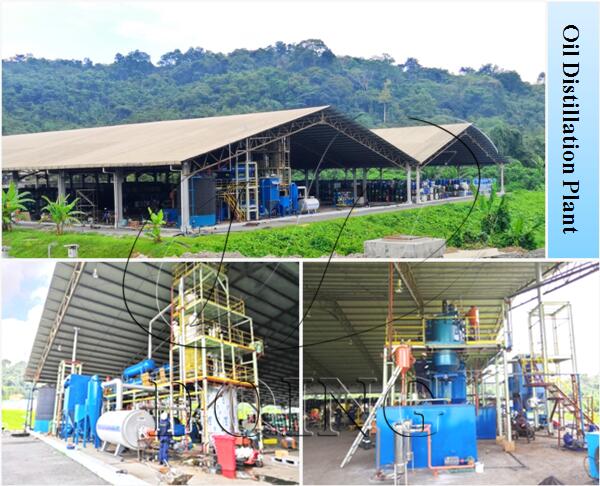

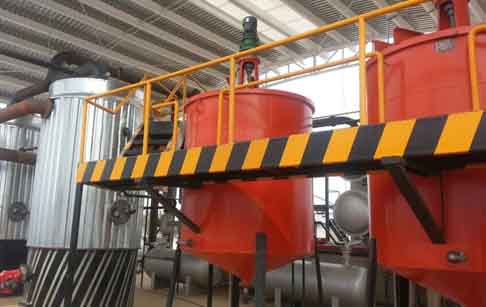

Waste tyre/plastic oil to diesel fuel distillation plant
Waste tyre and waste plastic to diesel fuel  distillaiton plant adopts one advanced technology called refining or distillation, which takes advantage of high temperature and heat the tyre/plastic oil to working temperature by using fuel oil, gas, coal etc. as fuel materials. Through changing forms of the oil from liquid state to gaseous state and then from gaseous state to liquid state, the distillation technology can successfully remove the particles, colloidal matter, acid and odour from tyre/plastic oil by acid-treatment and filtration. Finally we get qualified diesel oil with clean and transparent color and qualified smell. Having high economic values, these diesel oil can be widely used in low speed engine and generators such as digging machine, road roller, loading machine and so on.

Waste tyre and plastic oil to diesel fuel distillation plant working process

distillation plant
Waste tyre and plastic oil to diesel fuel distillation plant working process


Put waste tyre/palstic oil into reactor by oil pump.
Heating reactor over 150°C
High temperature oil gas will be cooling down to pure crude oil by condensers
After distillation system, oil should go through purification tank Ⅰand purification tank Ⅱwhere some catalyst for removing color
Then oil go into removing smell tank and add some decolorant for removing irritating smell.
Finally, you can get purity about 90% diesel oil.

 Waste tyre and plastic oil to diesel fuel distillation plant has some advantages.

plastic oil to diesel

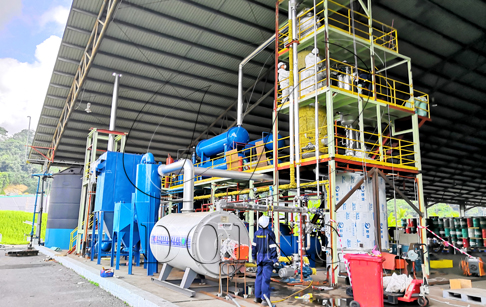

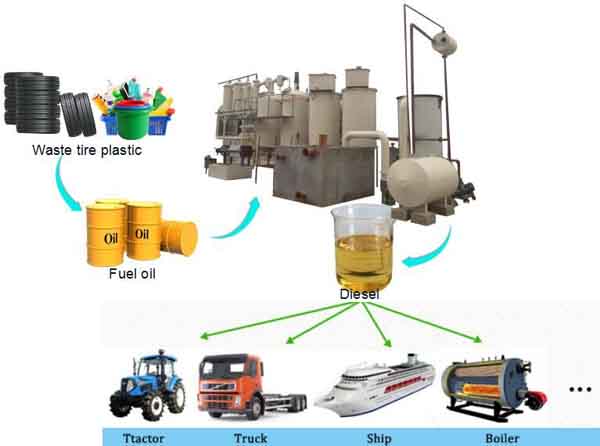

Waste tyre and plastic oil to diesel fuel distillation plant

1. Vertical reactor with indirectly heating system is very efficient and reasonable. It is easy to clean the bottom of reactor.
2. Indirect heating will prolong the service life of reactor
3. After finished one batch oil distillation, we will pump the oil to odor and color removal tank. Then can start to pump fuel oil to reactor for another batch. So we say it is continuous working.
4.Better oil quality.

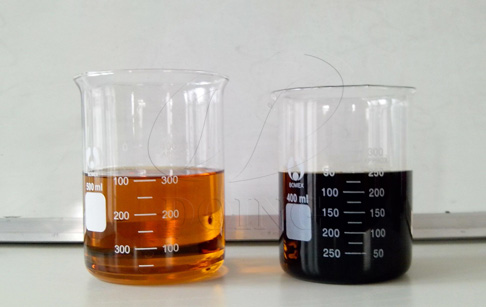

  The oil color can be darker or lighter according to customers’ requirement.

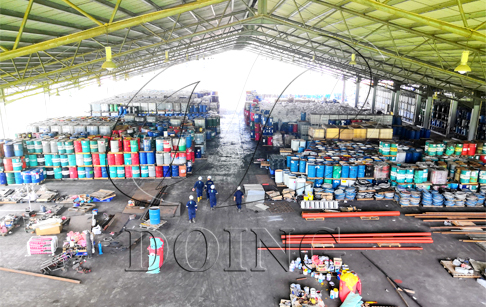

Till now we have successfully installed waste tyre and plastic oil to diesel fuelin different countries and won good feedback from our customer.


waste oil to diesel fuel

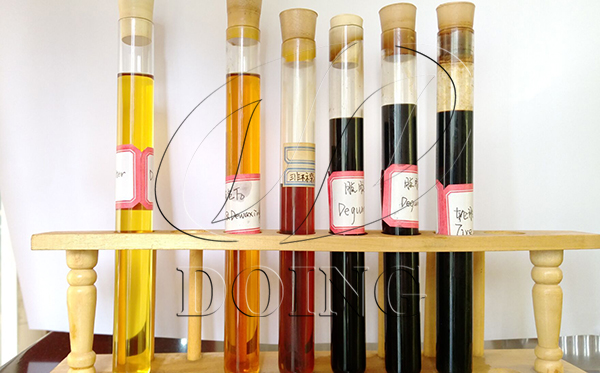

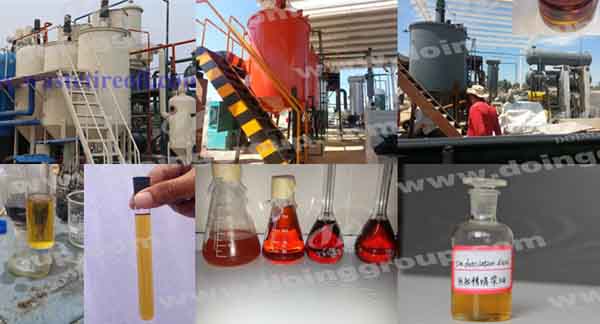

Waste tyre and plastic oil to diesel fuel and diesel oil



Technical parameter of  Waste tyre and plastic oil to diesel fuel distillation plant
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material motor oil, waste tire crude oil, plastic crude oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡

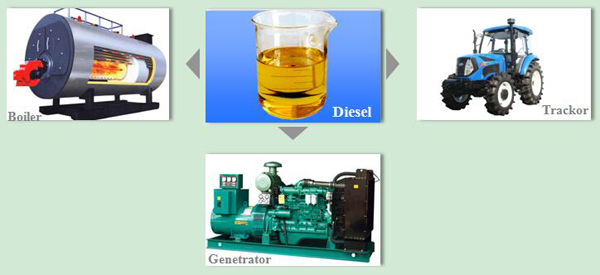

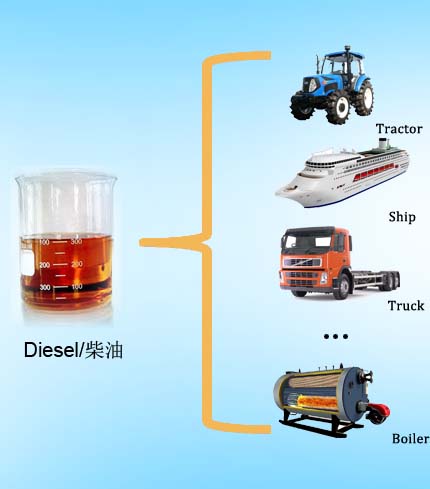

 Waste tyre and plastic oil to diesel fuel distillation plant diesel application
The diesel can application totractors ,trucks,ships and generator

distillation plant
Diesel application
