Advanced design waste plastic disposal machine is an industry that converts waste plastic and other waste materials into Pyrolysis Oil, Carbon Black & Hydrocarbon Gas. The advanced design waste plastic disposal machine can reduce the volumes of the waste products and help human protect the environment.

Chat Online Leave A Message
plastic waste disposal machine
Waste plastic
Plastic products has been used widely, and waste plastic can be seen everywhere. It has seriously affected our environment on two aspects, such as visual pollution and potential hazards. Visual pollution means that aesthetic perception on living city affected by scrap plastic in everywhere. Potential hazards mainly refers to degradation-resistant of waste plastic affecting on absorbing of nutrients and water by crop, reducing the production; and otherwise, animals will be die if eats it unconscious. Recycling and utilization of waste plastic is increasingly becoming an important aspect for environmental protection. Advanced design waste plastic disposal machine has supplied a new solution on disposal of waste plastic.
plastic waste machine
Advanced design waste plastic disposal machine
Advanced design waste plastic disposal machine is an industry that converts waste plastic and other waste materials into Pyrolysis Oil, Carbon Black & Hydrocarbon Gas. The advanced design waste plastic disposal machine can reduce the volumes of the waste products and help human protect the environment. And the plastic has been one of the most common materials since the beginning of 20th century because of its durability, low cost and light weight. Plastic makes up around 30% of all rubbish collected. This includes plastic bottles, containers, plastic wrap, packaging, electronic goods, car body parts, etc.

Advanced design waste plastic disposal machine working process
plastic dispose
Advanced design waste plastic disposal machine working process
The pyrolysis process and principle of waste plastic disposal machine:
Firstly, put the raw material into furnace
Secondly, burn the fuel material (coal, or wood, or natural gas, or oil) in the combustion system.
After finishing oil producing, the temperature of reactor will come down, at the same time; carbon black will be discharged automatically.
Lastly, when the temperature falls to 100 degree Celsius, worker could open the door of the reactor to discharge the steel wire, and then can start another batch.
Approx oil yield of different raw materials:

plastic disposal machine
Fuel oil from waste plastic
PE 95%
PP 90%
PS 90%
ABS 40%
Leftovers of paper Wet 15-20%, dry 60%
House garbage 35-50%
Plastic cable 80%
Plastic bag 50%
Submarine cable 75%
Rubber cable 35%
Sole 30%
Big tires 45-50%
Small tires 35-40%
PVC Not suitable
PET Not suitable




Advanced design waste plastic disposal machine technical data

Technical parameter of advanced design waste plastic disposal machine
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste tires Waste tires Waste tires
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about advanced design waste plastic disposal machine
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m


Advanced design waste plastic disposal machine final product application

Fuel oil
plastic disposal  machine

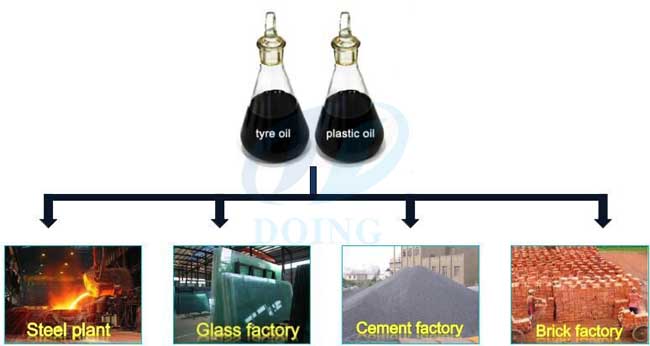

Fuel oil application


This oil product is a kind of crude fuel oil, which can be used for industrial heating used in any fuel needed industrial factories, such as cement plant, steel mill, glass factory, brick factory, boiler used factory, etc.  Or can be refined to diesel, directly used in diesel burners, generators, heavy trucks, agricultural machinery,  and mix with normal diesel used for cars.

Carbon black
plastic machine

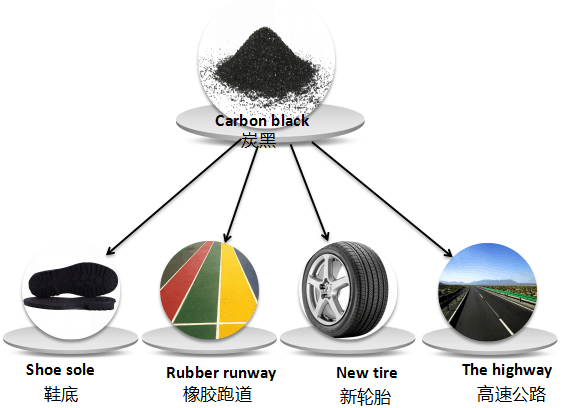

Carbon black application
Carbon black produced from this system is crude powdery material, which can be directly sold to cement factory mix with cement. Or made into briquettes used for heating, just like coal. Or grinded into fine powder used for making paint and printing ink.
