pyrolysis plant

Small scale plastic to oil recycling plant

The pyrolysis technology is a new invention, and the small scale plastic to oil recycling plant can turn the plastic waste into fuel oil, carbon black and combustible gas.

02-07-2018 11:13:07

+86-135-2669-2320

oilmachine@wastetireoil.com

Send Message Chat online
plastic recycling plant

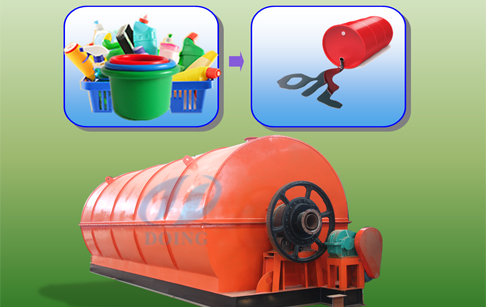

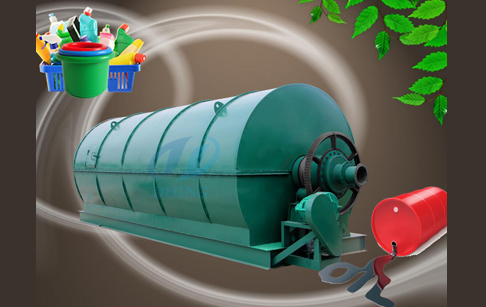

Small scale plastic to oil recycling plant
As the application of the plastic products becomes wider and wider, the pollution caused by plastic waste is also a huge problem. Some of the developed countries have put many emphasis on developing the recycling of waste plastic to oil machine.

The pyrolysis technology is a new invention, and the small scale plastic to oil recycling plant can turn the plastic waste into fuel oil, carbon black and combustible gas.
small capacity plastic recycling plant
Small scale plastic  to oil recycling plant

The plastic pyrolysis process is harmless to the environment and operator, in addition, when you first use the plant, we will assign you the professional technician, who can help you in installing and running the plant. So you can operate the plant easily.

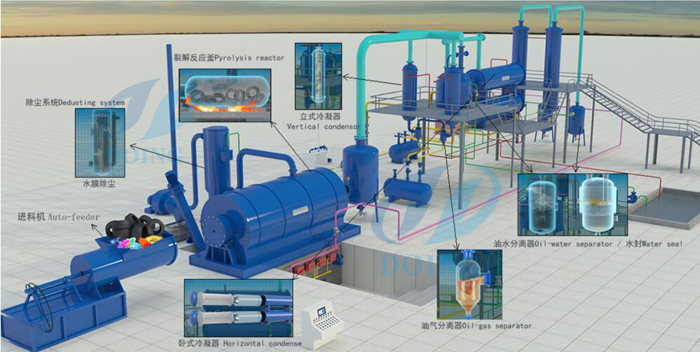

Small scale plastic to oil recycling plant working process

plastic recycling plant
Small scale  plastic to oil  recycling plant

1. Put dried plastic waste into reactor and the quantity shall be controlled under 2/3 of reactor for rotating more smoothly. Then close the feeding door.

2. The small scale plastic to oil recycling plant includes two stages. From 100℃ to 250 ℃ is the preliminary stage. The light oil gas shall be released at 100 ℃ and fluid oil shall be released at 120℃ . From 280℃ to 350℃is the top output rate interval. Oil gas will be collected into manifold, heavy particles and oil will be gathered and liquefied in center of manifold and drop down into the heavy oil tank. The lighter gas will rise up to the multi-functional oil condensers, then be liquefied into oil and stored in the oil tank. The incondensable gas through de-sulfuration and de-dusting by hydroseal will be led to heat the furnace for reducing the energy cost.

3. Cool down the plastic pyrolysis reactor after the process. Carbon black will be discharged automatically when the temperature falls down to 50-70 degrees.

plastic recycling plant

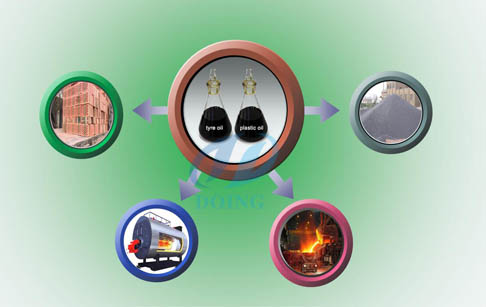

Plastic pyrolysis oil application
The plastic pyrolysis oil can be sold directly as fuel. Or be transformed into gasoline or diesel by the plastic oil distillation plant. The refined plastic  pyrolysis oil can be used for heavy oil generator to produce electricity.
small scale plastic recycling plant

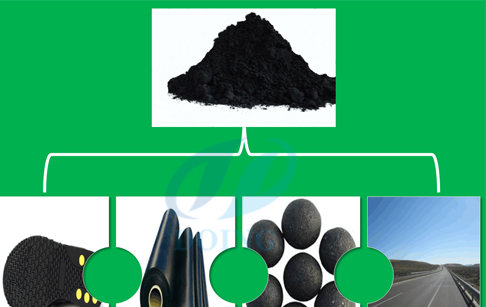

Carbon black
Carbon black may be reprocessed into color master batch or coal or refractory briquette. You can also increase the quality of the pyrolysis carbon black with our carbon black processing plant for sale.
