PCB recycling machine is a kind of machinery is used to crush waste PCB and separate the metal and resin powder.

Chat Online Leave A Message
Features of PCB Recycling Machine

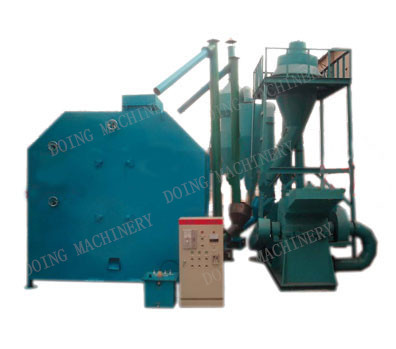

PCB recycling machine
PCB recycling machine

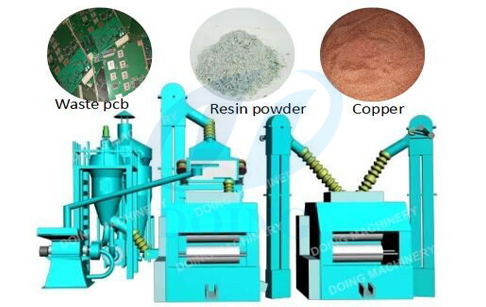

PCB recycling machine is a kind of machinery is used to crush waste PCB and separate the metal and resin powder.

1.Compact structure, reasonable layout, stable performance and low noise.
2. Uniform feed full production line adopts PLC control, coordinated operation.
3. three-stage crushing, handling capacity per hour 1200kg.
Crushing chamber with circulating water temperature control and noise reduction.
4.full production line using negative pressure feeding effectively reduce dust overflow.Back feeding system so crushed more efficient.
5. Airflow separation equipment sorting rate of 97 to 99%.
6. Pulse dust removal equipment efficiency up to 99.99%.
7. high voltage electrostatic sorter sorting the finer more efficient, effective control of non-ferrous metal loss.
8. Complete production line of high disposal bridge and guardrail convenient access real-time monitoring and maintenance of the equipment.
9. waste and scrap the device settings hydraulic system to facilitate the replacement of wearing parts, improve






Technical data of PCB recycling machine

Item Model Capacity(kg/h) Power(Kw) Size (m)(L*W*H) Weight(T) Remark
1 DY-400 100-200 28.5 3.5×1.5×3.0 1.8
2 DY-600 300-500 36.5 4.0×1.7×3.0 3.0
3 DY-800 500-800 90.0 4.5×1.5×4.2 7.7 Doubling crushing system
4 DY-1000 800-1000 104.2 4.8×1.8×4.2 9.4 Doubling crushing system



Application of PCB Recycling Machine

PCB Recycling Machine  is applicable to recycle mother boards of PC,waste circuit boards from mouse, telephone and TV, trimming of copper clad laminate (CCL) etc.


PCB Recycling Machine
PCB application
