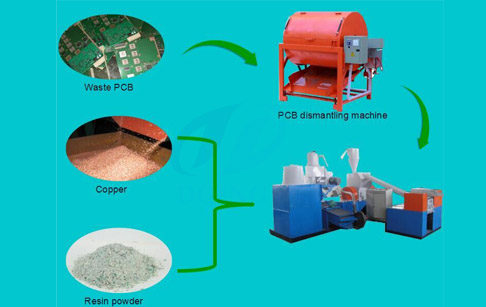

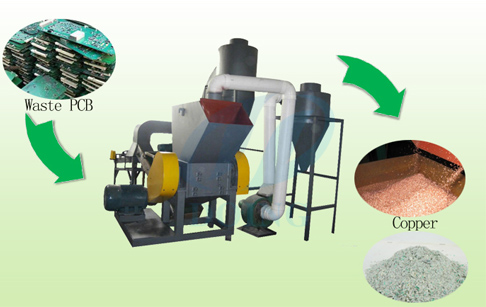

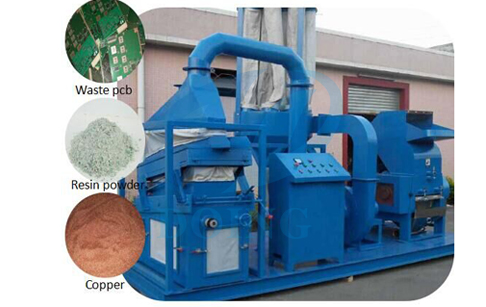

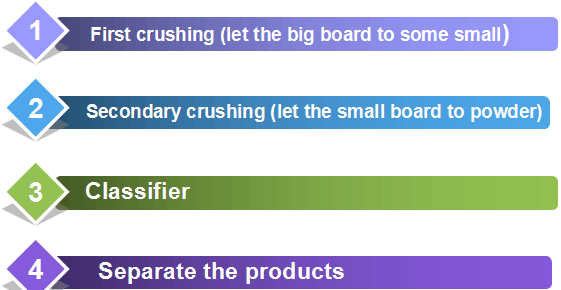

Circuit board recycling plant for cash is able to crush waste PCB,PCB edge trimming and copper coating board and also separate the metal powderand non-metal powder. The metal powder and non-metal powder willbe selected by cyclone and vibration separation. Metal recycling ratio could reach 90-98%.De-dust system and activated carbon adsorption tower realize nopollution in whole recycling process.
| Item | Model | Capacity(kg/h) | Power(Kw) | Size (m)(L*W*H) | Weight(T) | Remark |
| 1 | DY-400 | 100-200 | 28.5 | 3.5×1.5×3.0 | 1.8 | |
| 2 | DY-600 | 300-500 | 36.5 | 4.0×1.7×3.0 | 3.0 | |
| 3 | DY-800 | 500-800 | 90.0 | 4.5×1.5×4.2 | 7.7 | Doubling crushing system |
| 4 | DY-1000 | 800-1000 | 104.2 | 4.8×1.8×4.2 | 9.4 |
Doubling crushing system |
