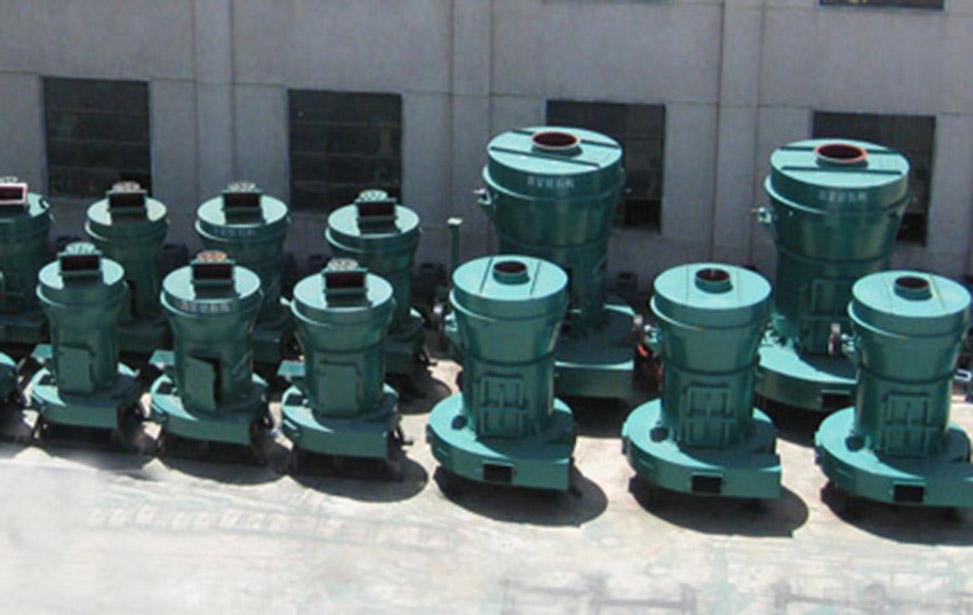

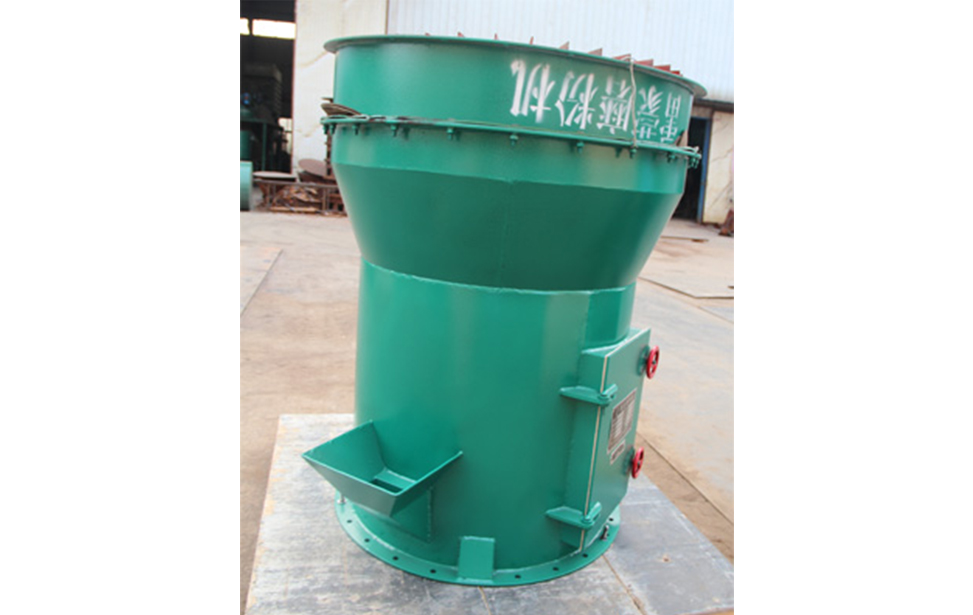

Raymond Mill

Raymond Mill is widely used for flour milling industry. As an accessory equipment of waste tyres/plastics pyrolysis fuel oil platn, Raymond mill is used to process the carbon black which is a kind of product from pyrolysis machine. It mills the carbon black into smaller granule, which should meets the different demands of the market.Doing help clients purchasing the Raymond Mill when needed.

Features

  1.  Professional skill and meets the industry demands.
  2. The carbon black should be sold as a higher price after milling.

Technical Data

Model 3R1410 3R1815 3R2115 3R2615 3R2715 3R3016 4R2715 4R3016 4R3216 5R4119 6R4427
(mm)Max Feeding Size 10-15 10-15 10-15 15-20 15-20 20-25 15-20 20-25 20-25 20-30 20-50
(mm)Output Size 0.250-0.045mm/60-325mesh
(T)Capacity 1-10 1.3-14 1.5-16 41694 2-29 3-34 2-31 3-35 3-39 5-66 10-140
(r/min) Centre Axis Speed 280 195 160 162 162 160 162 160 140 103 82
(mm)Grinding ring Outer Dia. 500 630 725 861 915 975 915 975 1073 1400 1750
(mm)Grinding roller Dia. 140 180 210 260 270 300 270 300 320 410 420
(mm)Roller and ring height 100 150 150 150 150 160 150 160 160 190 270
(kw)Main Motor  7.5 11 15 18.5 22 30 22 30 37 75 132
(kw)Blower Motor Power 5.5 7.5 11 18.5 18.5 22 18.5 22 30 75 132
(kw)Analyzer Motor Power 1.1 1.5 2.2 2.2 2.2 2.2 2.2 2.2 5.5 7.5 11
Working principle

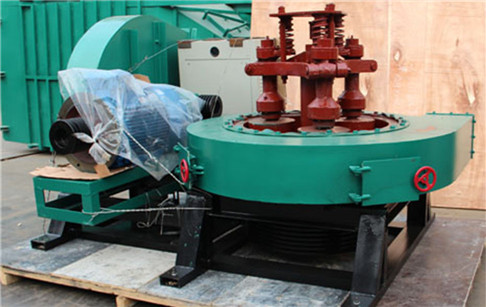

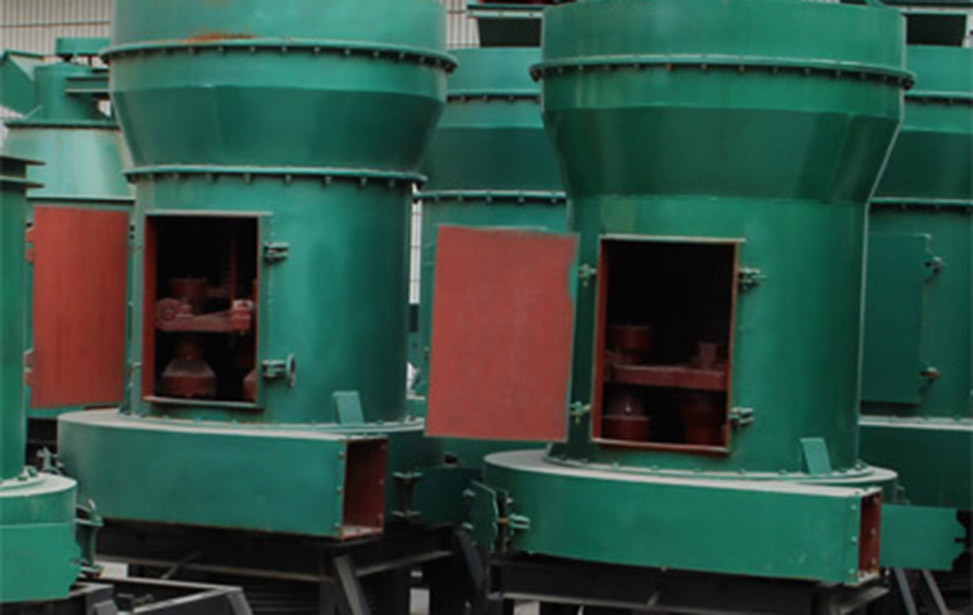

Firstly, raw material is crushed by jaw crusher to the size required, then elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between the ring and rollers to accomplish the grinding. After grinding, the rough materials will be recycled by the air from the fan back into the grinding chamber for regrinding and the fine powders are blew into the cyclone and poured out through the output-powder pipe as the final products.

Application

Raymond mill is used cooperatively with waste tyre pyrolysis to fuel oil plant  could processes the carbon black deeply and raise the value of the carbon black.
