Used tyre recycling plant for sale

1. the waste tyre recycling plant is adopt indirect heating to leng then the life span of reactor,save energy, keep Eco-environmental, Gurantee high oil quality. 2. the Waste tyre recycling plant is running with vacuum system,improve efficiency,promote the oil quality and oil rate.

09-01-2016 16:15:02

+86-135-2669-2320

oilmachine@wastetireoil.com

Send Message Chat online

Features
Technical Data
Application

Waste tyre pollution

How do the waste tyres influence people’s life so much? Nowadays, disused tyres disposal becomes a very current topic as many problems caused by tyres pile will explode sooner or later. The most noticeable problem associated with large tyre piles is the fire hazard they present. Once a tyre pile catches fire, it is very hard to extinguish. In some instances, tyre piles have been burning for several months with the black fumes being visible for many miles. Diseases such as encephalitis and dengue fever have also been reported around scrap tyre piles, particularly in areas with warmer climates which are an ideal breeding ground for disease-carrying mosquitoes.

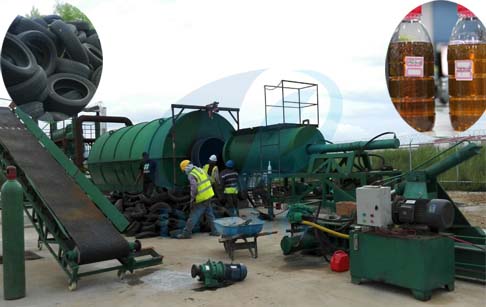

Used tyre recycling plant

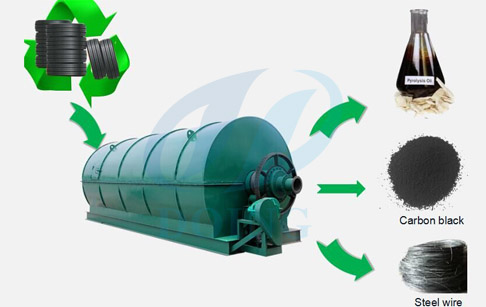

DOING GROUP with its unique renewable technology has come up with a concept of setting new standard used tyre recycling plant in renewable energy that includes using of waste tyres as a raw material and producing green fuel oil, carbon black, steel and gas.

Used tyre recycling plant raw material

Used tyre recycling plant raw material

1.Waste tire/tyre
2.Waste plstic
3.Waste rubber

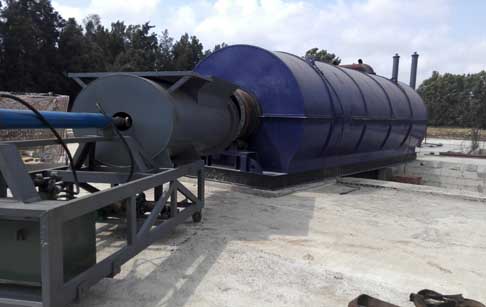

Used tyre recycling plant working process

Used tyre recycling plantworking process

Firstly, make reactor rotate clockwise 0.4r/min, put waste tyre into reactor, close feeding door.

Secondly, burned the fuel material(coal,or wood,or natural gas ,oil )in the furnace. Reactor will be slowly heated, when the temperature reach around 180 oC, oil gas will come out . then go to cooling system and liquid to oil.
Some incondensable gas which can't cooling down will be lead to furnace through a gas pipe. It will be used to heat reactor.

This can save your energy. Only the first 2 hours use energy for heating. After the first 2 hours mainly use gas, little energy is ok. After pyrolysis, all the oil gas come out from reactor, the temperature will fall down. Then make it rotate anticlockwise, carbon black discharging begin. Lastly,when the temperature deduce to 50 oC, worker can opened the door of reactor take steel wire out.

Features
Technical Data
Application

Used tyre recycling plant for sale technical data

Technical parameter of Used tyre recycling plant for sale
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tyre	Waste tyre	Waste tyre
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about Used tyre recycling plant for sale
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Features
Technical Data
Application

Used tyre recycling plant for sale final product application

Fuel oil application

Fuel oil from Used tyre recycling plant for sale are used in below industries
A.power plant factory
B.glass factory
C.cement factory
D.ceramic factory
E.aluminum factory
F.boiler factory
G.central heating factory
H.painting factory

The usage of final production-----Carbon black
Carbon black from Used tyre recycling plant for sale are used in below industries
A.electric cable jacketing
B.conveyor ban
C.hose and doormat
D.black nylon bag
E.rubber additive
F.automatic spare parts
G.heat isolation
H.black colorant in rubber materials
