Waste Tire Pyrolysis Plant

Waste tyre recycling pyrolysis plant

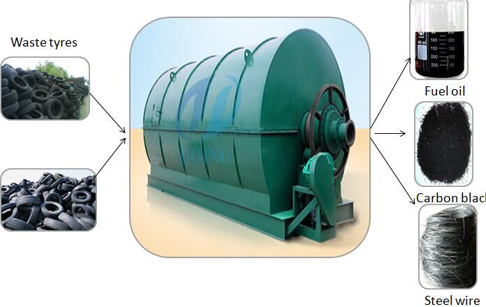

Doing waste tyre recycling pyrolysis plant can convert waste tyre into high grade diesel fuel. Waste tyre are long chain polymers containing more than 50000 carbon atoms attached to each other in a cross linked or straight chain.During tyre recycling pyrolysis plant , this long chain is broken down into smaller chain. The waste tyre recycling pyrolysis plant turns waste materials into gases and liquids. The end products can be used in any standard diesel engine or generator with little or no modifications.


tyre recycling pyrolysis plant

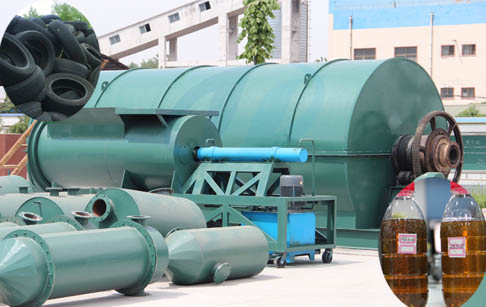

Waste tyre recycling pyrolysis plant

First, Let's talk about "WASTE TO ENERGY" project. In one word, WTE means the process of converting waste tyre/plastic/engine oil to useful fuel oil and valuable diesel. See what can we benefit: WTE processes will make an impact on our environment and will be a quite lucrative investment! This WTE process eliminates landfills, piles of used tires, asbestos, and toxic material by converting the waste into electricity, fuel, steam, construction/highway aggregate, and a superior insulation and creates jobs.
tyre pyrolysis plant

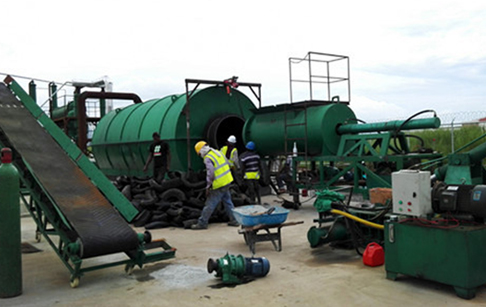

Waste tyre recycling pyrolysis plant
Doing  waste tyre recycling pyrolysis plant can convert waste tyre into high grade diesel fuel. Waste tyre are long chain polymers containing more than 50000 carbon atoms attached to each other in a cross linked or straight chain.During tyre recycling  pyrolysis plant , this long chain is broken down into smaller chain. The waste tyre recycling  pyrolysis plant turns waste materials into gases and liquids. The end products can be used in any standard diesel engine or generator with little or no modifications.

Waste tyre recycling pyrolysis plant raw material :
tyre recycling pyrolysis plant

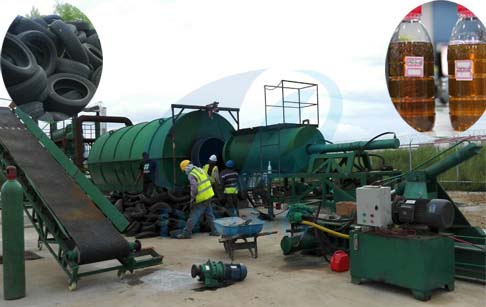

Waste tyre recycling pyrolysis plant raw material
1.Waste tire/tyre
2.Waste plastic
3.Waste rubber

Waste tyre recycling pyrolysis plant offers following feature:

1.Generates quality fuel with lower emission
2.Controls tyre land pollution
3.Recover energy from waste tyre
4.Helps recycle carbon black





Waste tyre recycling pyrolysis plant  technical data

Technical parameter of Waste tyre recycling pyrolysis plant
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste tyre Waste tyre Waste tyre
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about waste tyre recycling pyrolysis plant
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m



Waste tyre yre recycling pyrolysis plant final product application

Fuel Oil (40% to 45%)
pyrolysis plant
Fule oil application
The main application of oil products produced by our waste tyre recycling pyrolysis plant is the fuel oil that is wide used for industrial and commercial purposes. 40% to 45% oil of the amount of recycled scrap tyres can be carried with licensed tanker trucks.

Steel Wire Scrape(10% to 15%)
The third product of tyre recycling pyrolysis plant is steel wire, the quantity of steel wire is about 10% to 15% according to tyre quality. It is very easy to sell steel wire scrape in local market.

Carbon Black Powder (30% to 35%)
tyre recyling plant
Carbon black application
The second product of tyre  recycling pyrolysis plant is carbon black. The quantity of carbon black is about 30% to 35% according to tyre quality. The use of carbon black is as a chemical strengthener in rubber and coloring agent in pigment industries. This carbon black price is very competitive compared to petroleum carbon black, so our pyrolysis carbon black is good option in stead of petroleum carbon black.

Pyrolytic Gases (About 10%)
We get about 10% pyrolytic gases during pyrolysis process. The main component of this gases are methane (CH4), so we can not condense and store this gases. We use this gases to heat the reactor and we can use exceed gases for other heating application.
