Waste plastic to oil conversion machine

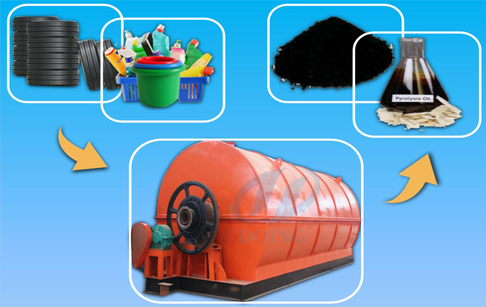

As we all know, the plastic is hard to degrade, so the best method to dispose waste plastics is to convert them into useful resources. The waste plastic to oil conversion machine manufactured by Doing group can be used for converting plastics into pyrolysis oil and carbon black. Which waste plastic can be disposal by waste plastic to oil conversion machine?

plastic to oil machine
Waste plastic to oil conversion machine

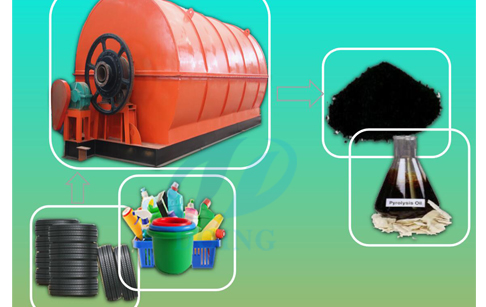

As we all know, the plastic is hard to degrade, so the best method to dispose waste plastics is to convert them into useful resources. The waste plastic to oil conversion machine manufactured by Doing group can be used for converting plastics into pyrolysis oil and carbon black.After by Doing oil refining plant refined ,you will get clean diesel ,the diesel can bring huge profit for you!

 Which waste plastic can be disposal by waste plastic to oil conversion machine?


plastic to oil machine

Waste plastic to oil conversion machine can application this waste plastic
DOING GROUP with its unique renewable technology has come up with a concept of setting new standard waste plastic to oil conversion machine in renewable energy that includes using of waste tires as a raw material and producing green fuel oil, carbon black, steel and gas. With global warming and utilization of rubber, it has now become necessary to recycle the waste and convert it in fuel oil in such a way that it is environment friendly. This is a unique technology and can change energy market scenario in a big way.

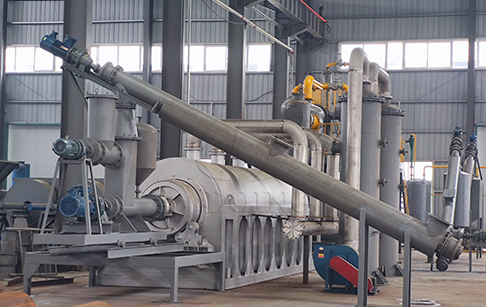

Waste plastic to oil conversion machine advantage
conversion waste plastic to oil
Waste plastic to oil conversion machine advantage

1) Latest generation waste plastic to oil conversion machine
2) Efficient technology.
3) Easy process and easy to operate.
4) More efficient comparatively.
5) High Oil Output recovery

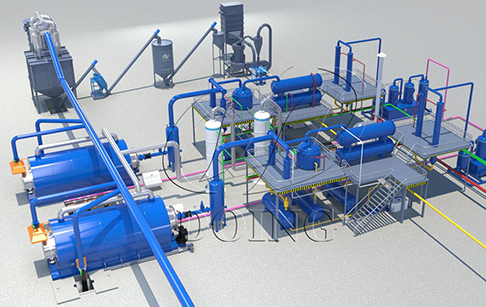

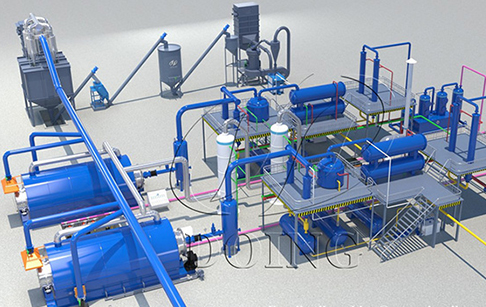

Waste plastic to oil conversion machine working process


conversion waste plastic to oil
      Waste plastic to oil conversion machine working process
1. Put raw materials into reactor by auto-feeder, then heat the reactor with any one of the following fuel materials: coal, wood, natural gas, oil. Do not stop heating the reactor, when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.
2. The liquid oil will be cooled by condenser from oil gas and then collected by oil tank. Third, the exhaust gas which can not be cooled in normal pressure will be recycled to heat the reactor. In this way, you can not only saving energy, but also protecting environment.
3. Smoke produced by processing the tyres/plastics can achieve national emission standard through dual desulfurization and dusting removal device.
4. After you get oil, the temperature will be low, at this time, carbon black will be discharged automatically.
 After all these steps, you can start another batch.

Waste plastic to oil conversion machine diferent plastic oil yield



PE 95%
PP 90%
PS 90%
ABS 40%
Leftovers of paper/纸厂下脚料 Wet 15-20%,dry 60%
House garbage/生活垃圾 35%-50%
Plastic cable/塑料电缆 80%
Plastic bag/塑料袋 50%
Submarine cable/海底电缆 75%
Rubber cable /橡胶电缆 35%
Sole/鞋底 30%
Big tires/卡车轮胎 45%-50%
Small tires/轿车轮胎 35%-40%
PVC Not suitable/不适合炼油
PET Not suitable/不适合炼油





Waste plastic to oil conversion machine technical data

Technical parameter of  Waste plastic to oil conversion machine
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste plastic Waste plastic Waste plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about Waste plastic to oil conversion machine
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m

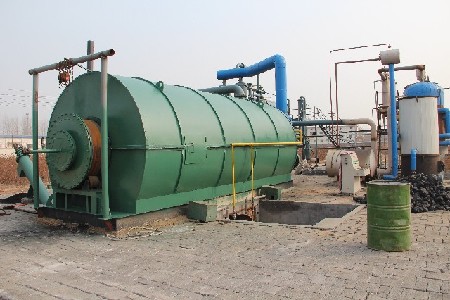

Waste plastic to oil conversion machine application

plastic to oil machine
Fule oil application


Fuel oil
This oil product is a kind of crude fuel oil, which can be used for industrial heating used in any fuel needed industrial factories, such as cement plant, steel mill, glass factory, brick factory, boiler used factory, etc.  Or can be refined to diesel, directly used in diesel burners, generators, heavy trucks, agricultural machinery,  and mix with normal diesel used for cars.

Carbon black
conversion plastic to oil machine
Carbon black application

Carbon black produced from this waste plastic to oil conversion machine  is crude powdery material, which can be directly sold to cement factory mix with cement. Or made into briquettes used for heating, just like coal. Or grinded into fine powder used for making paint and printing ink.

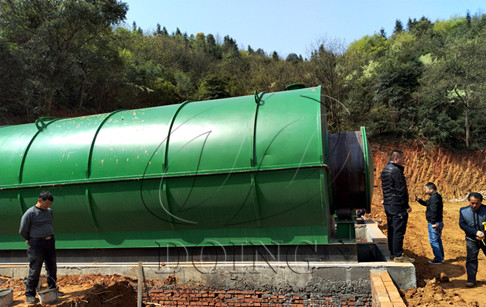

plastic to oil plant delivery
Waste plastic to oil conversion machine delivery
