pyrolysis plant

Oil extraction machine from used tyre

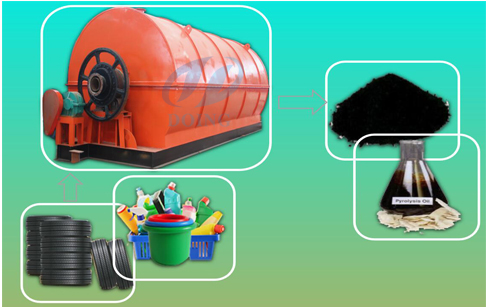

The Oil extraction machine from used tyre work on the aforementioned principle. These plants can effectively extraction oil from used tyre, like Oil, Carbon Black, and Hydrocarbon Gas etc. Here, the raw material is either waste tyre or waste plastic. Then, the recycleables are heated from the reactor to be able to generate fuels, oil, and gas.

Features

tyre oil extraction machine
Oil extraction machine from used tyre
Owing to the difficulty in disposal of tyres and environmental pollution due to accumulation of waste tyres, pyrolysis is carried out as an alternative, efficient and environmental valorisation process, rather than combustion-inceneration which primarily is characterized as a destructive one.

Oil extraction machine from used tyre  works on the principle of the chemical reaction that has the molecular review of large-sized molecules into smaller molecules at elevated temperatures and even without oxygen. The task necessitates the simultaneous change of both physical condition and chemical composition in the molecules, which is irreversible.
oil extraction machine
Oil extraction machine from used tyre
The Oil extraction machine from used tyre  work on the aforementioned principle. These plants can effectively extraction oil from used tyre, like Oil, Carbon Black, and Hydrocarbon Gas etc. Here, the raw material is either waste tyre or waste plastic. Then, the recycleables are heated from the reactor to be able to generate fuels, oil, and gas.
tyre oil extraction machine

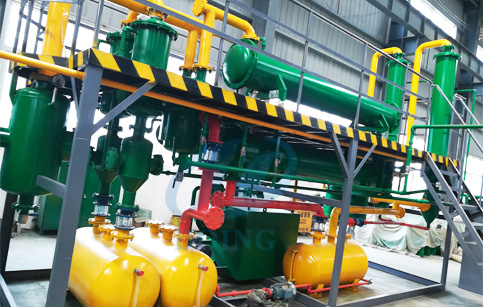

Oil extraction machine from used tyre installed in Mexico


Technical Data

Oil extraction machine from used tyre technology  data

Technical parameter of oil extraction machine from used tyre
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste tyre Waste tyre Waste tyre
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about  oil extraction machine from used tyre
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m


Application

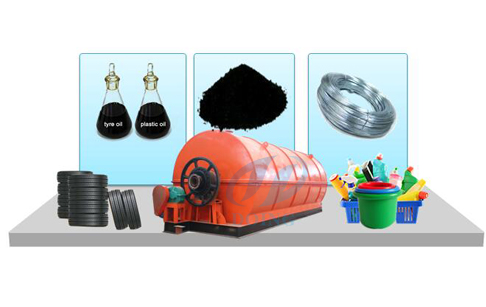

Oil extraction machine from used tyre final product application
used tyre machine
Fuel oil application
Fuel oil (45% to 50%) of oil extraction machine from used tyre
The main oil product produced by our recycling application is the fuel oil that is wide used for industrial and commercial purposes.Such as power plant factory,glass factory,cement factory,ceramic fatory.
oil extraction machine
Carbon black application
Carbon black (30% to 35%) of oil extraction machine from used tyre
Carbon Black is the main product recycled by Pyrolysis technology. The amount of recycled carbon black is 30% to 35% of the total amount of scrap plastics recycled in the system
