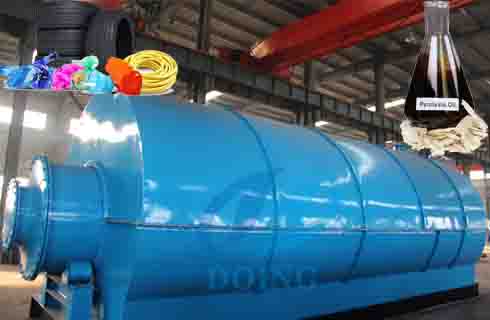

5th generation waste tire/plastic recycling machine

Recycling Machines

The 5th generation waste tire/plastic recycling machine can fast pyrolysis waste tyres and waste plastic, this recycling machine includes below parts: reactor, catalytic chamber, horizontal condenser, oil-water separator, heavy & light oil tank, horizontal condensers, vacuum system, anti-back fire device, dust removing device, auto-slagging device, carbon black conveyor & elevator.

Chat Online Leave A Message
tire recycling machine
Waste plastic
With increasing plastic products consumption, waste plastic is also growing. At present in the world, waste plastic are mainly as plastic film, plastic yarn and fabric, foam, plastic packaging and containers, daily plastic products, plastic bags, agricultural film and so on. Besides, cars plastic, electronic and electrical appliances supporting plastic become one of the important sources of waste plastic after these products scrap. If there is any mistake of the application and post-processing of the storing, transportation and processing of waste plastic, it will damage the environment and harm to people’s health.
plastic recycling machine
Waste tyre
With the development of society, our daily life is full of rubber products, such as tyre, shoes and so on. On one hand, they make our life convenient, on the other hand, if not be treated directly, continuous pyrolysis tire to fuel oil supplier, it devoted to meeting the demands of all the customers.
waste recycling machine
5th generation waste tire/plastic recycling machine

Waste tire/plastic recycling machine  of henan doing mechanical equipment co.ltd is a new and green technology to convert the waste tIre/plastic to oil  for fuel.

DOING is a professional manufacturer who producing waste tire/plastic recycling machine. As an outstanding supplier, DOING supply you waste tire/plastic recycling machine with high quality, competitive price and best after-sale service, which will makes you satisfied.


5th generation waste tire/plastic recycling machine technical data

Technical parameter of 5th generation waste tire/plastic recycling machine
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste tires/plastic Waste tires/plastic Waste tires/plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about 5th generation waste tire/plastic recycling machine
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m


The final products and usage from waste tire/plastic recycling machine:
1. Fuel oil 45%-52%
recycling machine
Fuel oil application
Fuel oil from tires/plastic can be used in below industries:

A. power plant factory B. glass factor C. cement factory D. ceramic factory E. aluminum factory F. boiler factory G. central heating factory H. painting factory

2. Carbon black 30%-35%
plastic recycling plant
Carbon black application
A. electric cable jacketing B. conveyor ban C. hose and doormat D. black nylon bag E. rubber additive F. automatic spare parts G. heat isolation H. black colorant in rubber materials I. plastic pipes J. industries rubber products K. fire fighting steel wire from waste tyre can be re-sale to steel factory
