Copper wire granulator suppliers

Copper wire recycling machine

The copper wire granulator machine is designed to recycle the auto electric wire, motorcycle electric wire, computer wire and other various miscellaneous material cable, communication cables etc. And diameter of the cables is between 1-20mm.

Chat Online Leave A Message
copper wire granulator

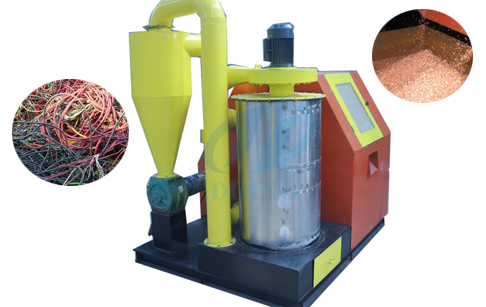

Copper wire granulator
Copper wire granulator is a complete solution for processing scrap automotive wires, communication cables and other miscellaneous wires and cables. By using this recycling machine, we can get pure copper granules and plastic pieces. The diameter of wires and cables suitable for the machine to process is below 20 mm, single conductor with diameter of 0.2-0.3 mm is best.

Copper wire granulator advantage

1. Wide Application: The  copper wire granulator machine is designed to recycle the auto electric wire, motorcycle electric wire, computer wire and other various miscellaneous material cable, communication cables etc. And diameter of the cables is between 1-20mm.

2. Multi-function:  copper wire granulator machine  combines the complex processes into one, including crushing, conveying, dust collecting, separating process. It can recycle both the copper granule and PVC plastic.

3. Environment-friendly: copper wire granulator machine has solved the pollution caused by the burning of the copper wires. With high copper recycling rate of 95%--99.99%, the device is with excellent dust removal performance because of the adoption of the fully closed production model

Copper wire granulator working process
copper wire granulator

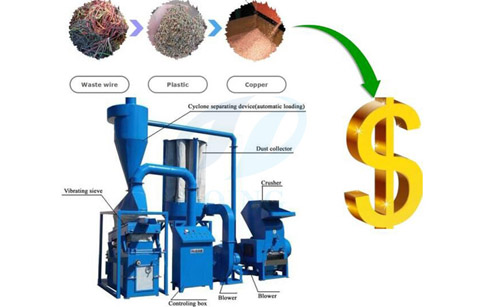

Copper wire granulator working process

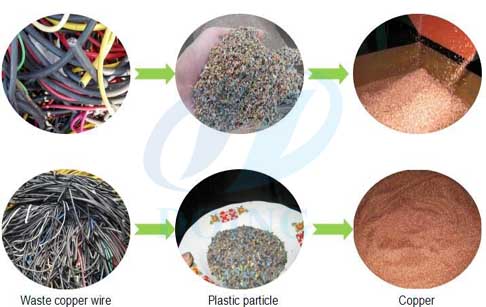

 First ,we put the waste copper wire into the used copper wire granulator,waste copper wire cable is cut into granules first, during this process, copper and plastic is separated but mixed together, then the granules are sent to vibration device for separation, through wind blow and vibration, the copper and plasticis are separated, then pure copper comes out fromone side and pure plastic comes out from the other side, we collect the separated pure copper and plastic.

Copper wire granulator technica data

Item Model Capacity(kg/h) Power(Kw) Size (m)(L*W*H) Weight(T) Remark
1 DY-400 100-200 28.5 3.5×1.5×3.0 1.8
2 DY-600 300-500 36.5 4.0×1.7×3.0 3.0
3 DY-800 500-800 90.0 4.5×1.5×4.2 7.7 Doubling crushing system
4 DY-1000 800-1000 104.2 4.8×1.8×4.2 9.4 Doubling crushing system



Copper wire granulator application
copper wire granulator
Copper wire granulator application


Copper wire granulator application to scrap automotive wires, communication cables and other miscellaneous wires and cables.
