pyrolysis plant

Scrap PCB recycling machine

Scrap Pcb recycling machine is developed in combination with advanced domestic and foreign technology. The scrap PCB recycling machine is a kind of recycling machine and can separated metal and plastic.

+86-135-2669-2320

market@doinggroup.com

Send Message Chat Online

Features

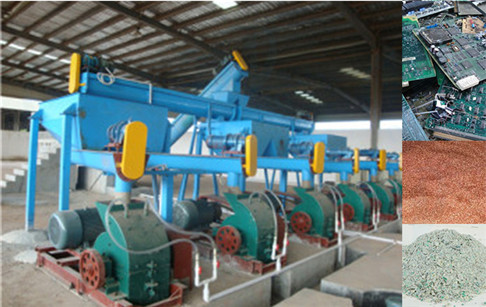

scrap PCB recycling machine
Scrap PCB recycling machine
Scrap PCB Recycling Machine which adopts the newest technology that makes raw material to be the mixture of metal and resin fiber powder by crushing and pulverizing, then separates metal from resin fiber powder by classifying and high voltage electrostatic separating. In this methods ,the mtal separation rate is more than 98%. All the indexes is up to national standard .

Scrap PCB recycling machine feature

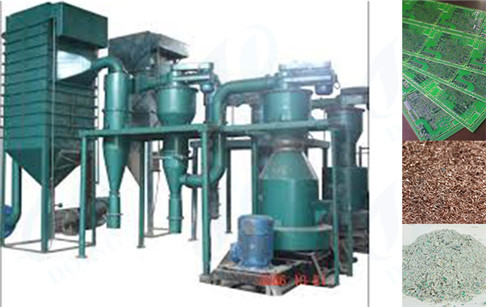

pcb recycling machine
Scrap PCB recycling machine
1.High recycling rate compared with dry process
2.Easy to operating, no special skill  required
3.Circulation water
 4.No second polution produced

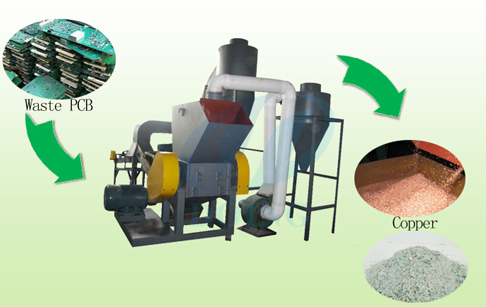

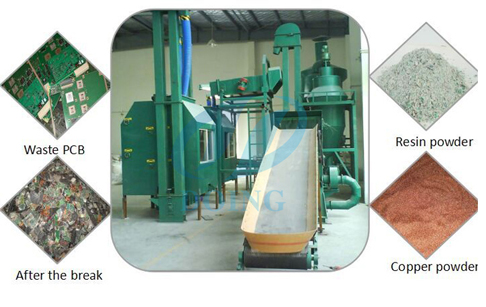

Scrap PCB recycling machine working process

Broken Machine - Crushing Machine - Electrical control cabinet - Classifier - Separator-Feeder - Dust Removal Equipment
scrap pcb recycling machine
Scrap PCB recycling machine working process

Technical Data

Technical data of Scrap PCB recycling machine

Model   Voltage   Power   Capacity  Dimension     Weight
DYLS-400    380V     22.45 kw     150-200kg/H       2700*1900*2300(mm)    1200kg
DYLS-600  380V   36 kw  300-400kg/H  3500*1900*2700(mm)  3000kg
DYLS-800  380V   75 kw  500-600kg/H  5500*4500*3300(mm)  8000k


Application

Scrap PCB recycling machine application

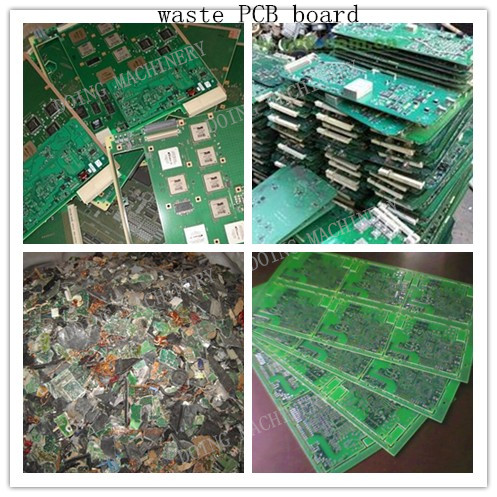

Scrap PCB recycling machine can application  to various printed circuit boards .TV boards ,printed boards,computer boards,cellphone board,aluminum-plastic boards ,copper-coasted plates,printed circuit board and processing waste and waste adn used electic appliance

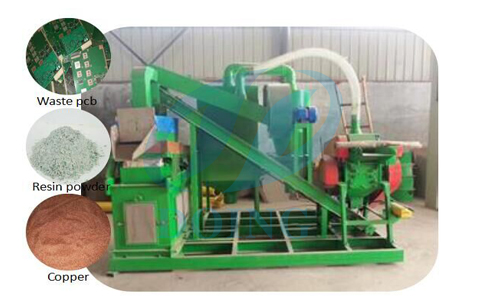

Scrap PCB recycling machine
Scrap PCB recycling machine application
