Features
Scrap wire stripper tools is a kind of machinery used for recycling waste & scrap copper wire and cables.
auto electric wire, Motorcycle electric wire, Computer wire and other various miscellaneous material cables, communication cables, etc. The recycling rate can reach 99%, can get copper granule and PVC plastic in the end automatically.

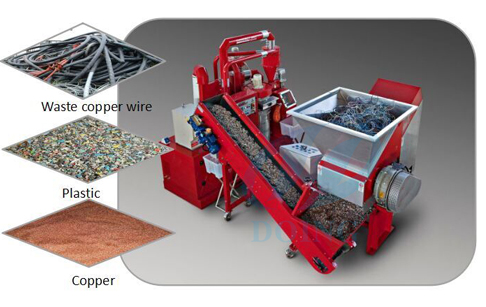

Scrap wire stripper tools
Scrap wire stripper tools feature
1. Suitable structure and layout, easy to install.
2. PLC system makes it easier to control the whole line, convenient to feed and operate.
3.The design of separator and dust collector is handy for movement or transport.
4.The rotor of the grinder is alternating, leading to more efficiency, faster discharging, lower noise and more steady running.
5. The separation rate of air separator can reach at least 99%.
6.Feedback system will do the second crushing to the unfinished material, which guarantee the totally separation of metal and non-metal.
7. Dust-collector can prevent the leak of dust, the dust-cleaning rate can reach 99.99%

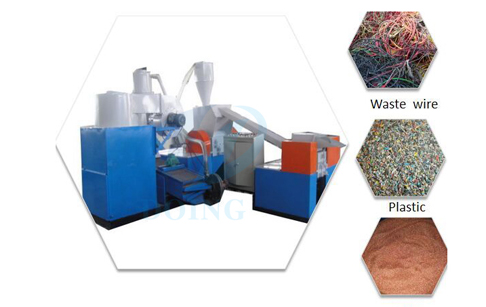

Scrap coper wire stripper tools feature
Scrap wire stripper tools working process

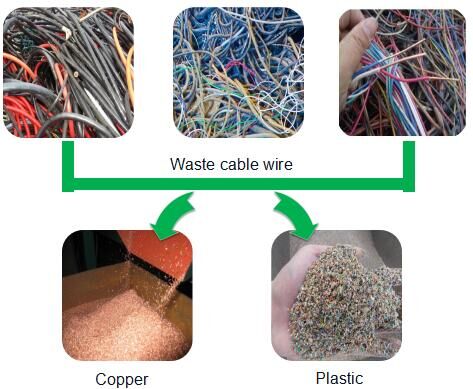

Working process of scrap wire stripper tool
When directly put the wase copper wire into the scrap wire stripper tool, waste copper wire cable is cut into granules first, during this process, copper and plastic is separated but mixed together, then the granules are sent to vibration device for separation, through wind blow and vibration, the copper and plasticis are separated, then pure copper comes out fromone side and pure plastic comes out from the other side, we collect the separated pure copper and plastic
Technical Data
Scrap wire stripper technical data
|
Item |
Model |
Capacity(kg/h) |
Power(Kw) |
Size (m)(L*W*H) |
Weight(T) |
Remark |
|
1 |
DY-400 |
100-200 |
28.5 |
3.5×1.5×3.0 |
1.8 |
|
|
2 |
DY-600 |
300-500 |
36.5 |
4.0×1.7×3.0 |
3.0 |
|
|
3 |
DY-800 |
500-800 |
90.0 |
4.5×1.5×4.2 |
7.7 |
Doubling crushing system |
|
4 |
DY-1000 |
800-1000 |
104.2 |
4.8×1.8×4.2 |
9.4 |
Doubling crushing system |
Application

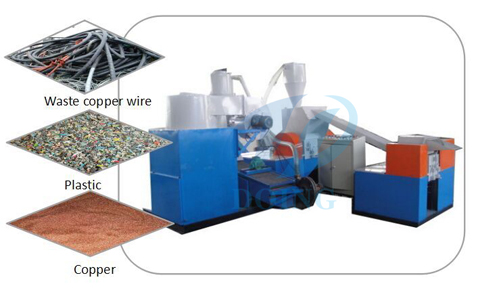

Scrap wire stripper tool application
Scrap wire stripper tool application to auto electric wire, Motorcycle electric wire, Computer wire and other various miscellaneous material cables, communication cables, etc. The recycling rate can reach 99%, can get copper granule and PVC plastic in the end automatically.
Scrap wire stripper tool application
