Old tire crusher machine

ZPS series whole old tire crusher machine is mainly used for crushing scrap rubber and waste tires,which is applied for crushing sidewall steel-removed truck tire, car tire, inner tube, rubber shoes and other used rubber products and benefits the waste recycling industry.

tire crusher
Old tire crusher machine
ZPS series whole old tire crusher machine is mainly used for crushing scrap rubber and waste tires,which is applied for crushing sidewall steel-removed truck tire, car tire, inner tube, rubber shoes and other used rubber products and benefits the waste recycling industry.
Old tire crusher machine technical data
Model 1200
Input size ≤1200mm
Output size ≤50×50mm
Capacity 1500-3000kg/h
Power 2×55kw+5.5kw
Dimension 5200×2800×3500mm
Weight 15600 kg

Old tire crusher machine Structure and principle
old tire crusher

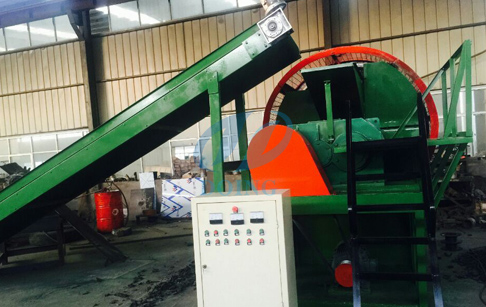

Old tire crusher machine in our factory

ZPS series whole old tire crusher machine has horizontal structure, adopts the overall base and stand-alone bearing, which is helpful for installation, commissioning and maintenance. The waste tire and rubber are crushed in the crushing chamber. The main part to compete the crushing is the 20pcs three-jaw cutter installed in two horizontal and parallel axes. Two axes rotate relatively according to a certain ratio, waste rubber is cut and broken in the relative movement of the claw plates. The broken rubber piece which meet the size requirement will drop on the conveyor through the round sieve hole. Otherwise, it will go with the round sieve back to the crushing chamber for crushing again. The claw plate, made of high quality carbon steel and surface specially processed , has features of high hardness, stiffness, and wear resistance.
