Extracting diesel from waste oil refinery equipment

Waste Oil Distillation

Extracting diesel from waste oil refinery equipment can convert waste oil, waste tire oil, plastic oil, and waste engine oil to diesel. In some country, Extracting diesel from waste oil refinery equipment also named waste oil distillation machine, distillation equipment, it just name different, but have a same functions.

Chat Online Leave A Message
waste oil refinery equipment
Extracting diesel from waste oil refinery equipment
Waste oil has two categories according to the source. One kind is transmission oil of machinery operation, this kind of waste oil has been added with addition agent and impurity. Another is lubricating oil discharged by all kind of vehicles such as car, truck, bus and ship, etc. At present, along with increasing of vehicles, there is a large amount of waste oil need be recycled. Many people have found waste oil disposal business opportunities. Extracting diesel from waste oil refinery equipment can convert waste oil, waste tire oil, plastic oil, and waste engine oil to diesel. In some country, Extracting diesel from waste oil refinery equipment also named waste oil distillation machine, distillation equipment, it just name different, but have a same functions.

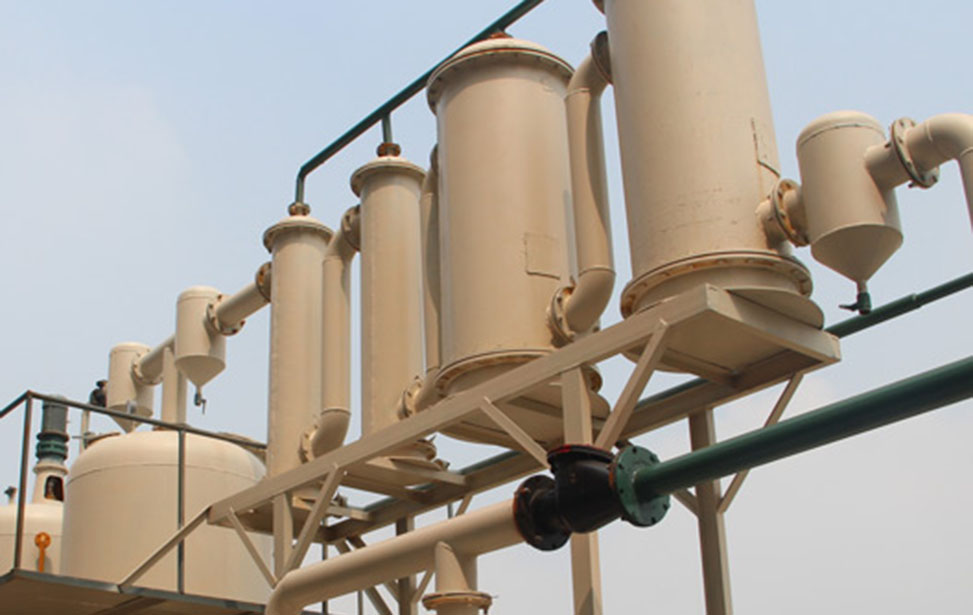

waste oil refining machine
Extracting diesel from waste oil refinery equipment

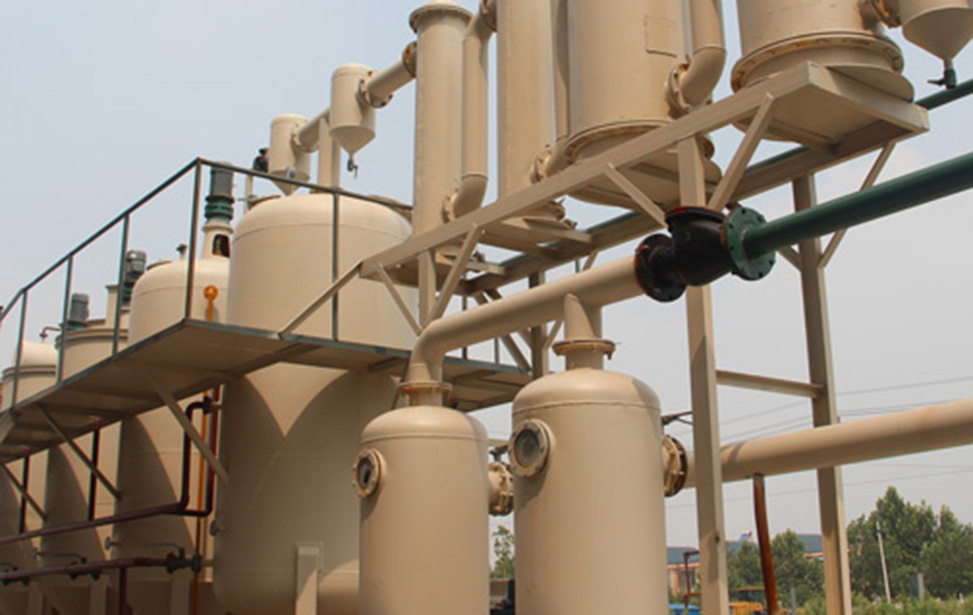

oil refinery equipment
Extracting diesel from waste oil refinery equipment
1) The extracting diesel from waste oil refinery equipmentis certified by CE, SGS and ISO.

2) Latest double vertical tubular condensers, 56 cooling pipes in each condenser, more cooling area, more effective cooling effect, higher oil yield.

3) Equipped with safety valves, auto alarming system, anti-explosion valve, which will guarantee 100% safety.

4) Flue tube condenser, cool down the exhaust gas from the burner, protect draft fan and improve dedusting effects.

5) Adopts Three-layer dedusting system to cleanse the exhaust gas to reach European pollution control standards.

6) Automatic submerged welding technology, ultrasonic nondestructive testing,guarantee the equipment quality.

7) Oil pump feeding and discharging, save much manpower.


100% safety assurance:
1. Safety devices such as alarming device, pressure gauge, safety valve. If there is some pressure in the reactor, the alarming device will ring and even no workers hear it, it does not matter as we have the reducing pressure device automatically.
2. Vacuum system can ensure the plant running in a safety condition. Make the whole refining processing be on a normal pressure to avoid accident.


Technical parameters of extracting diesel from waste oil refinery equipment

Technical parameter of extracting diesel from waste oil refinery equipment
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material motor oil, waste tire crude oil, plastic crude oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡


waste oil application

Waste oil refinery equipment applied for waste engine recycler, waste oil collect center and also used by who have lots of waste tyres and plastic. The final diesel after refining can be used for tractors, trucks, ships and diesel oil generators etc. below is the different waste oil with its oil rate.


Oil yield of different material:
No. Name Oil yield
1 Waste tire oil 85%-90%
2 Waste plastic oil 95%
3 Waste engine oil 85%-90%
