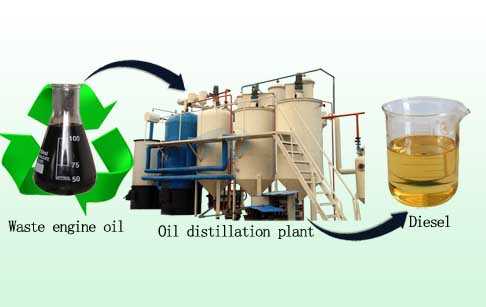

waste engine oil to diesel
Waste engine oil refine to diesel machine
Recycling your used engine oil into diesel is efficient way to save both money and the environment. Waste engine oil can generate quality energy, if processed, stored and handled with care.

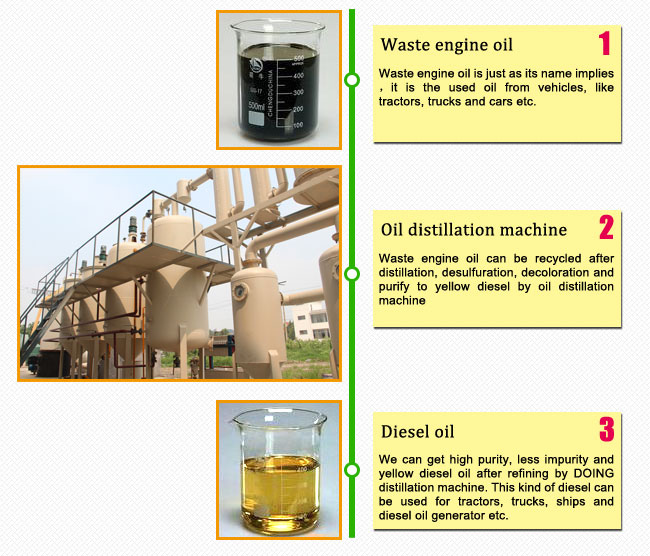

waste engine oil refining machine,waste engine oil
Waste engine oil refine to diesel machine

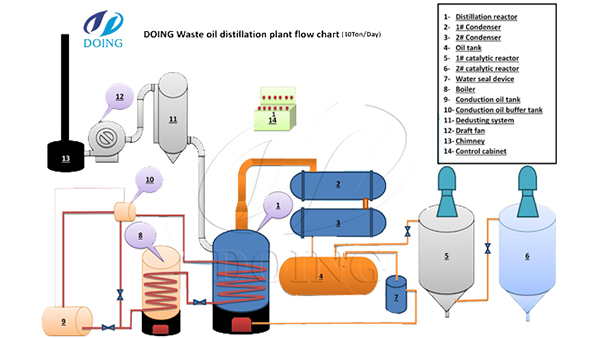

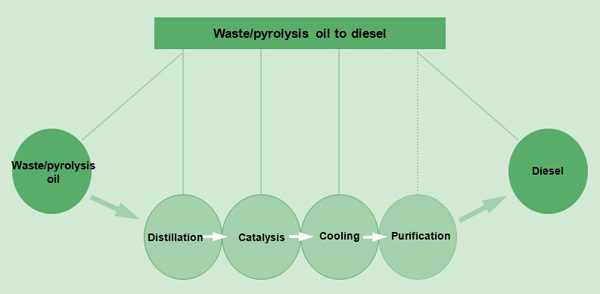

Waste engine oil refine to diesel machine working process
waste engine oil to deisel
Waste engine oil refine to diesel machine
First of all, put the waste engine oil in the waste engine oil refine to diesel machine for further process;

Secondly, heat engine  oil in non-oxygen environment, which will start to boil and evaporate,

Thirdly, put those vapors through a cooling pipe and the vapors will condense to liquid , while some of the vapors with shorter hydrocarbon lengths will remain as a gas.

Fourthly, the exit of the cooling pipe is then going through a bubbler containing water to capture the last liquid forms of fuel and leave only gas that is then burned;

Finally, this kind of oil will be piped into deep purifying system with acidity and alkaline cleaning device as well as pressure filtering system.

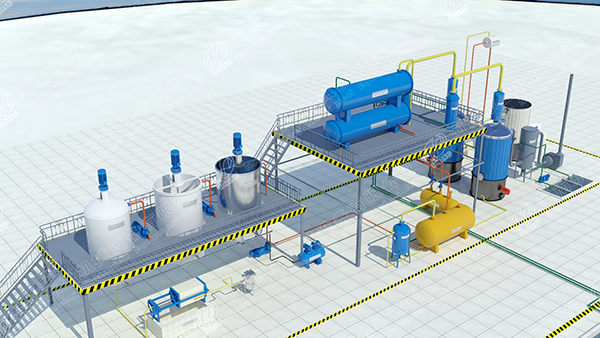

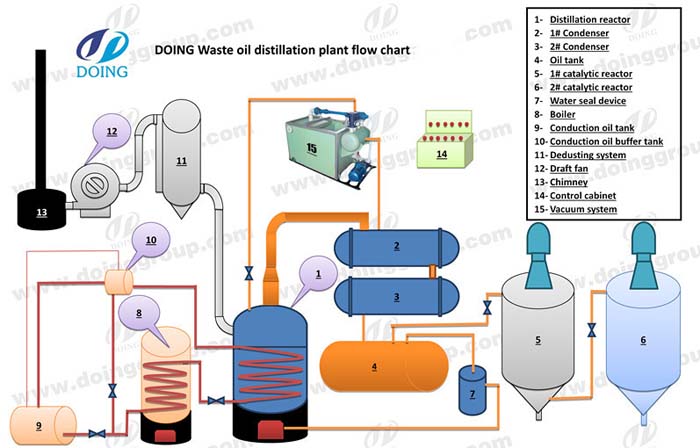

Configuration of waste engine oil refine to diesel machine:
waste oil refining machine

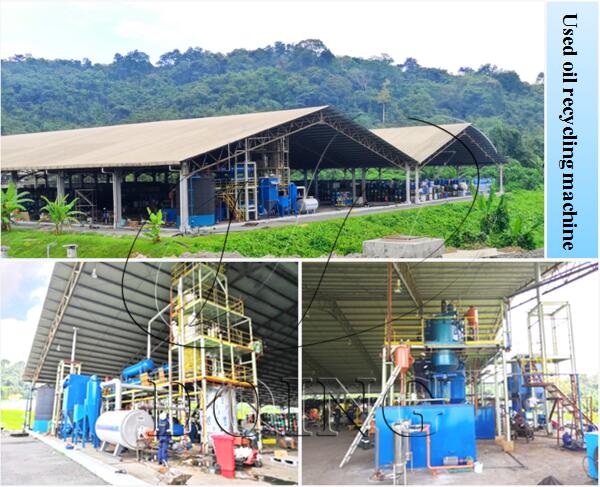

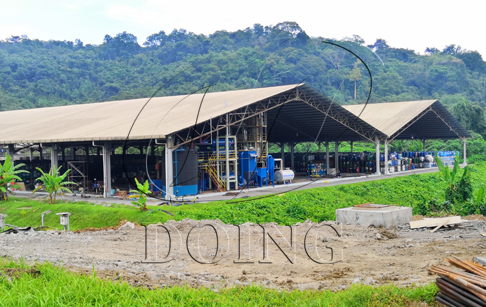

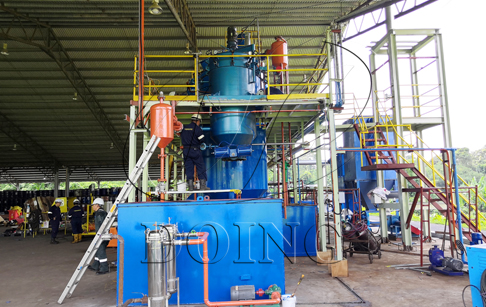

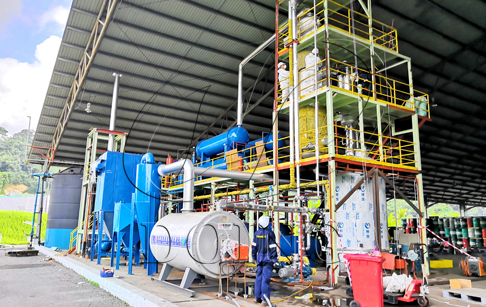

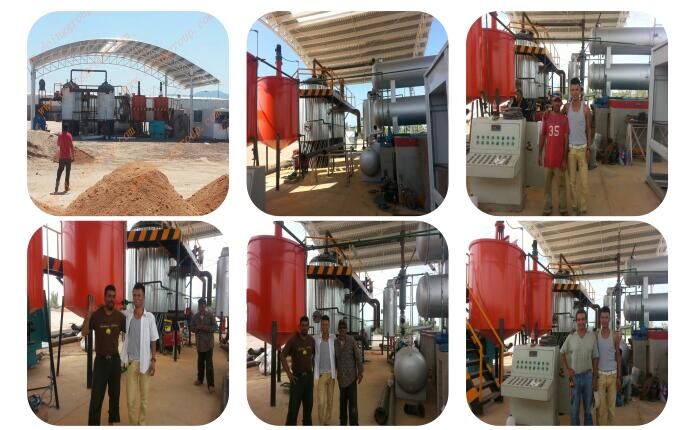

Waste engine oil refine to diesel machine install in Mexico
1. Reactor: 4 reactor, each reactor has a different materials.
2. Heating way: wood, coal, crude oil, gas
3. Dust Removing System: water removing
4. Condenser: vertical condensers (water cooling function, improve the oil quality)
5.Safety device: Vacuum system
There advantage of DOING waste engine oil refine to diesel machine:
1. There are four reactors for the refinery machine. We heat the reactor indirectly by using the Boiler heating system to lengthen the life span of reactor.
2. Our machine operates in the vacuum environment to promote the rate of the oil yield and quality of oil.
3. There three steps to purify the oil to convert tyre oil to diesel that can be used to the tractors, trucks and diesel generator etc.


Technical parameter of  Waste engine oil refine to diesel machine
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material Waste engine oil, waste tire crude oil, plastic crude oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡

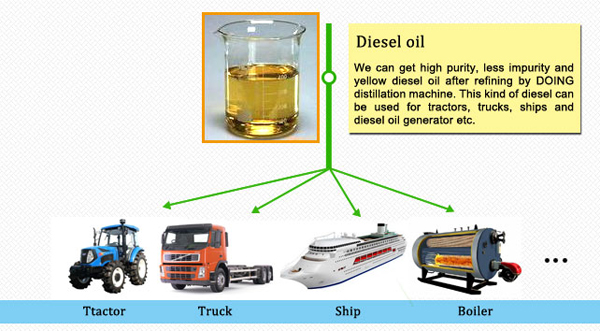

waste engine oil to diesel oil application

Diesel from oil distillation machine can be used for tractors, trucks, ships and diesel oil generators etc. below is the different waste oil with its oil rate.


Oil yield of different material:
No. Name Oil yield
1 Waste tire oil 85%-90%
2 Waste plastic oil 95%
3 Waste engine oil 85%-90%
