Copper wire recycling machine

Copper wire recycling machine can separate the copper granule from the plastic by the winding separation and the vibrating separation at last. The copper purity can be 99.9%

Features

Copper wire recycling machine is a kind of machinery used for recycling waste & scrap copper wire and cables, whose diameter should be below 25mm,such as Auto electric wire, Motorcycle electric wire, Computer wire and other various miscellaneous material cables, communication cables, etc. The recycling rate can reach 99.9%,  can get copper granule and PVC plastic in the end automatically.




copper wire recycling machine

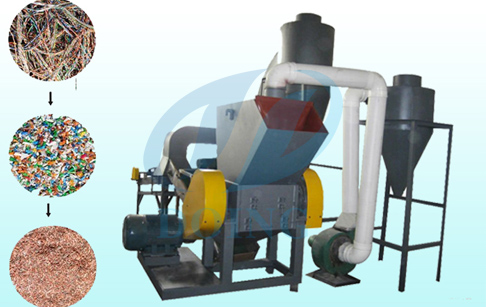

Copper wire recycling machine



Features of copper wire recycling machine

copper recycling machine
The feature of copper wire recycling machine

1. The materials of the waste wire can be telephone wire, household electric wire, automotive wire and cables, diameter should be 0.5-25 mm.

2. Just needing 1-2 workers to operate, labour-saving, small land occupancy and investment

3. Combines many processions into one,  the whole process is controlled by PLC, including crushing, conveying, dust collecting, separating process. It can recycle both the copper granule and PVC plastic.

4. Copper wire recycling machine can separate the copper granule from the plastic by the winding separation and the vibrating separation at last. The copper purity can be 99.9%

5. No need water during the whole process, no dust, no environmental pollution.


Copper wire recycling machine Process:

1. Starting:

Please make sure all the machines are in good condition. Before getting started, please keep the machine unloaded running for 5-10 minutes.

2. Feed inlet

Please clear up iron from the mixed cables, avoiding damage to crusher blade.

3. Fine crushing

If there is any abnormal noise, please stop and check the crusher. Change different size screen, if the copper granule is too fine or too much copper
without separating from plastic

4. Vibrating separator

After curshed, the mixed material will be delivered to vibrating device. The copper fro vibrating separator is complete copper without plastic,






Technical Data

Technical data of copper wire recycling machine

Item Model Capacity(kg/h) Power(Kw) Size (m)(L*W*H) Weight(T) Remark
1 DY-400 100-200 28.5 3.5×1.5×3.0 1.8
2 DY-600 300-500 36.5 4.0×1.7×3.0 3.0
3 DY-800 500-800 90.0 4.5×1.5×4.2 7.7 Doubling crushing system
4 DY-1000 800-1000 104.2 4.8×1.8×4.2 9.4 Doubling crushing system



Application

Application of copper wire recycling machine
copper wire recycling machine

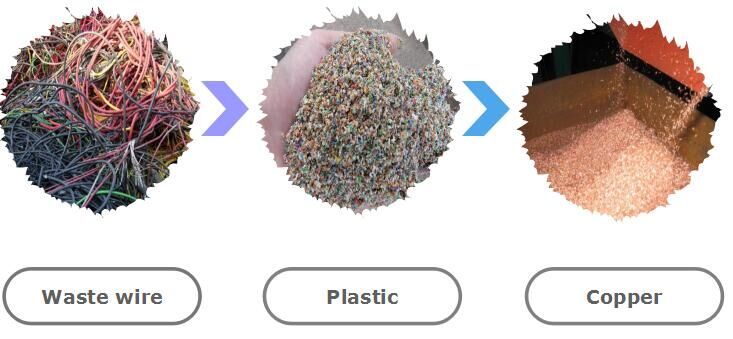

Final product of copper wire recycling machine

Copper wire recycling machine for recycling copper is a kind of machinery used for recycling waste & scrap copper wire and cables.
auto electric wire, Motorcycle electric wire, Computer wire and other various miscellaneous material cables, communication cables, etc. The recycling rate can reach 99%, can get copper granule and PVC plastic in the end automatically.
