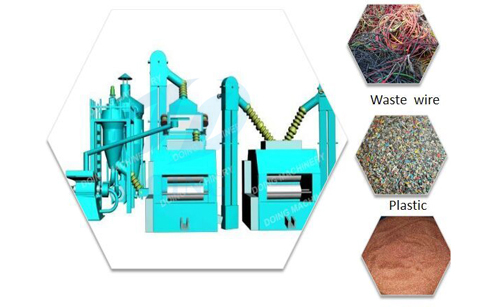

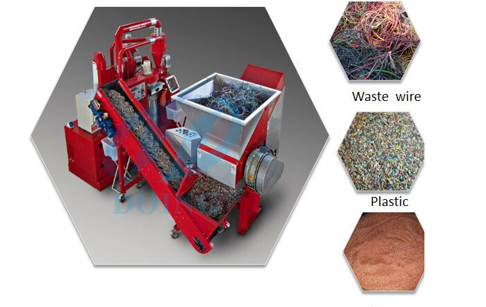

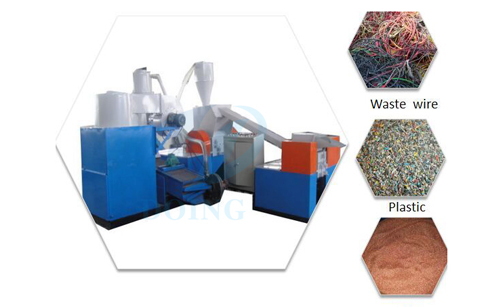

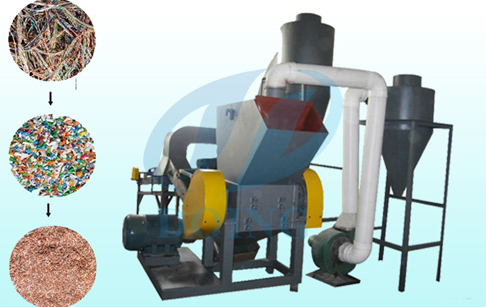

Wire stripping machine

Copper wire recycling machine

Wire stirpping machine is suitable for various types of wire,stable and perfect performance, easy to use, simple operation, strong practicability, it's also the most common use of stripping machine.

Chat Online Leave A Message

wire stripping machine
Wire stripping machine

Wire stirpping machine is suitable for various types of wire,stable and perfect performance, easy to use, simple operation, strong practicability, it's also the most common use of stripping machine.

1. The material of the waste wire can be telephone wire, household electric wire, automotive wire and cables, diameter should be 0.5-25 mm.

2. Just needing 1-2 workers to operate, labour-saving, small land occupancy and investment

3. Combines many processions into one,  the whole process is controlled by PLC, including crushing, conveying, dust collecting, separating process. It can recycle both the copper granule and PVC plastic.

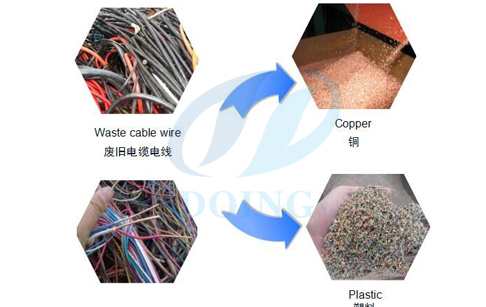

4. Wire stripping machine can separate the copper granule from the plastic by the winding separation and the vibrating separation at last. The copper purity can be 99.9%

5. No need water during the whole process, no dust, no environmental pollution.

Technical data of wire stripping machine

Item Model Capacity(kg/h) Power(Kw) Size (m)(L*W*H) Weight(T) Remark
1 DY-400 100-200 28.5 3.5×1.5×3.0 1.8
2 DY-600 300-500 36.5 4.0×1.7×3.0 3.0
3 DY-800 500-800 90.0 4.5×1.5×4.2 7.7 Doubling crushing system
4 DY-1000 800-1000 104.2 4.8×1.8×4.2 9.4 Doubling crushing system



Wire stripping machine application
wire stripping machine
Application of wire stirpping machine

Wire stripping machine is a kind of machinery used for recycling waste & scrap copper wire and cables, whose diameter should be below 25mm,such as Auto electric wire, Motorcycle electric wire, Computer wire and other various miscellaneous material cables, communication cables, etc. The recycling rate can reach 99.9%,  can get copper granule and PVC plastic in the end automatically.
