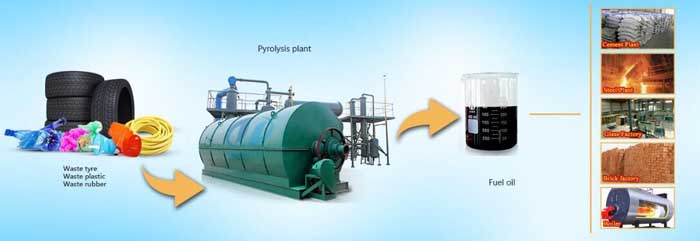

The waste tire/plastic to fuel oil pyrolysis plant is a machine that converts waste plastic,tires and rubber and other waste materials into pyrolysis oil, carbon black and hydrocarbon gas. The waste tire/plastic to fuel oil pyrolysis plant can reduce the volumes of the waste products and help human protect the environment.
How pyrolysis works step by process waste tire /plastic?

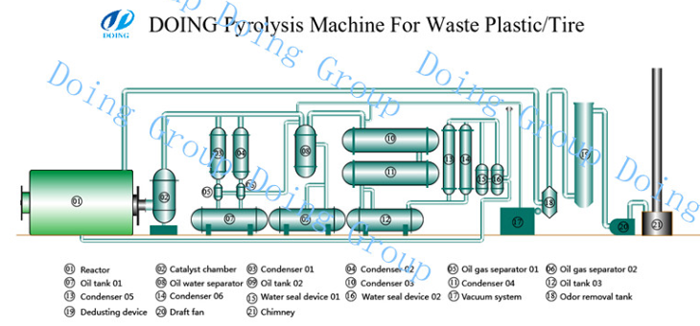

Waste tire/plastic to fuel oil pyrolysis plant working process
1. Feed raw material (waste tire、plastic) into reactor by full-automatic feeding machine. The reactor is supposed to be left 1/3 space for rotating more smoothly. Then make sure the door of feeding machine is closed.
2.Pyrolysis process: reactor will be gently heated by burning the fuel material (coal, wood, natural gas, LPG or tire oil generated from last batch). The oil gas will be released when the temperature reached 100℃(250-280℃ is the top output rate interval). Heavy oil gas separated by manifold is supposed to be liquefied and drop down into the heavy oil tank. The lighter gas will rise up to the oil condensers, be liquefied in to oil and stored in the oil tank. The incondensable gas though dusulphurization and dedust by hydroseal will be led to the furnace for recycling.
3..After all fuel oil is produced, the reactor should be cool down. Carbon black will be discharged automatically when the temperature falls down 40 degree. If the raw material is the whole tire, please take out steel wire form the reactor by hooks below 50 Celsius at least.
4.There possibly will be a little exhaust gas left, please must expel it after reaching emission standard.
5. Before starting next batch, make sure all the work has been done.
