Fully continuous tyre pyrolysis plant

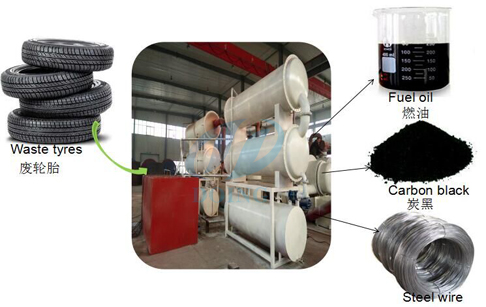

The objective of fully continuous waste tyre pyrolysis plant is continuous pyrolysis process. It can produce not less 45%-52% waste oil, 30%-35% carbon black and 12%-15% steel wire. The work process of continuous waste tire pyrolysis machine is similar as batch waste tyre pyrolysis machine. However, the whole working process of fully continuous waste tyre pyrolysis plant is much more efficient, and the cost of working fully continuous waste tyre pyrolysis plant is much lower. Fully continuous tyre pyrolysis plant raw material

Ms. Bonnie Zhao
+86-371-5677 1821
+86 158 9380 0169
Skype:bonniezhao2
oilmachine@doinggroup.com

Chat Online Leave A Message

The raw material of fully continuous tyre pyrolysis plant

The objective of fully continuous waste tyre pyrolysis plant is continuous pyrolysis process. It can produce not less 45%-52% waste oil, 30%-35% carbon black and 12%-15% steel wire. The work process of continuous waste tire pyrolysis machine is similar as batch waste tyre pyrolysis machine. However, the whole working process of fully continuous waste tyre pyrolysis plant is much more efficient, and the cost of working fully continuous waste tyre pyrolysis plant is much lower.
Fully continuous tyre pyrolysis plant raw material

ully continuous waste tyre pyrolysis plant
Fully continuous tyre pyrolysis plant raw material

1.Waste tire/tyre

2.Waste plastic

3.Waste rubber

Fully continuous waste tyre pyrolysis plant technical data

Technical parameter of fully continuous waste tyre pyrolysis plant
No.	Items	Contents
1	Equipment type	DY-10	DY-20	DY-30
2	Raw material	Waste tyre	Waste tyre	Waste tyre
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	10 ton	20 ton	30 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about fully continuous waste tyre pyrolysis plant
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Fully continuous tyre pyrolysis plant finap product application

Final product application of fully continuous waste tyre pyrolysis plant

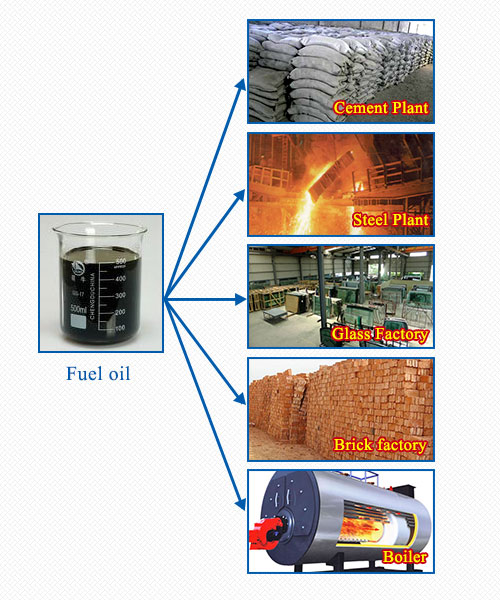

Fuel Oil (45% to 52%)
The main application of oil products produced by our fully continuous waste tyre pyrolysis plant is the fuel oil that is wide used for industrial and commercial purposes. Such as power plant factory,glass factory,cement factory,ceramic fatory.

Carbon Black (30%)
The second product of fully continuous waste tyre pyrolysis plant i is carbon black. The quantity of carbon black is about 30% to 35% according to tyre quality. Carbon black can application to electric cable jacketing,black nylon bag,rubber additive

Exhaust gas (About 10%)
We get about 10% pyrolytic gases during pyrolysis process. The main component of this gases are methane (CH4), so we can not condense and store this gases. We use this gases to heat the reactor and we can use exceed gases for other heating application.
