Used tyre pyrolysis plant

The used tyre pyrolysis plant is to feed the raw materials, such as tyre and plastic, on one side and discharge the carbon black continuously from the other side. the batch type is to feed the pyrolysis plant with a batch of raw material and take the process and start the next process after cooling down the pyrolysis plant and discharging the carbon black.

Ms. Bonnie Zhao
+86-371-5677 1821
+86 158 9380 0169
Skype:bonniezhao2
oilmachine@doinggroup.com

Chat Online Leave A Message

Used tyre pyrolysis plant

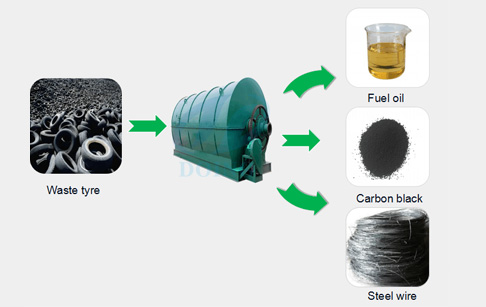

Doing group produced used tyre pyrolysis plant with lower cost and higher fuel oil output can convert waste tyre to fuel oil ,carbon black and steel wire.

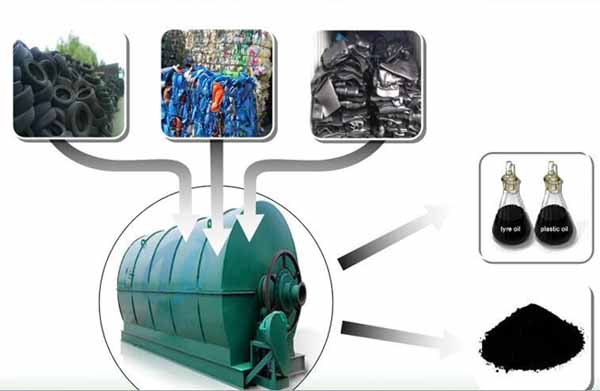

Used tyre pyrolysis plant application

Used tyre pyrolysis plant application

1.Waste tire /tyre
2.Waste plastic
3.Waste rubber

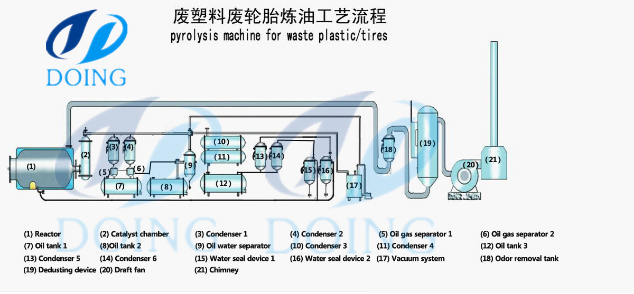

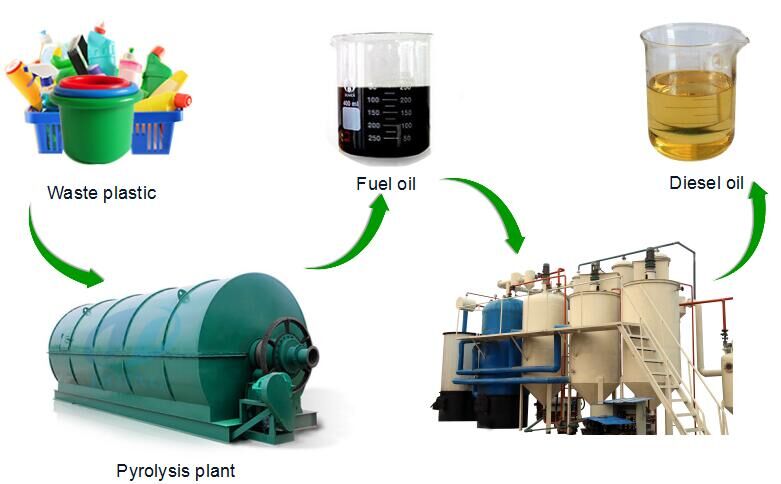

Used tyre pyrolysis plant working process

Used tyre pyrolysis plant

Used tyre pyrolysis plant advantage

1. The complete set of unit produces no smoke and smell with favorable effects of environmental protection.
2. The pressure release device operates through water circulation, which greatly improves the security of the system.
3. The release of pressure during the production dramatically increases the output within certain time and meanwhile improves the quality of oil.
4. The heating system adopts hot air heating technology, which improves the safety performance of production and heating efficiency.
5. High efficiency fuel gas heating system. When the heated gas reaches 150 during refining, a large amount of gas will be generated: through methane to butane
6.Whole tyre feed, no need to break, which reduces cost.

Technical Data

Used tyre pyrolysis plant technical data

Technical parameter of used tyre pyrolysis plant
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tyre	Waste tyre	Waste tyre
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about used tyre pyrolysis plant
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60�?nbsp;/month
7	Total power	19kw
8	Land area	35m*15m

Application

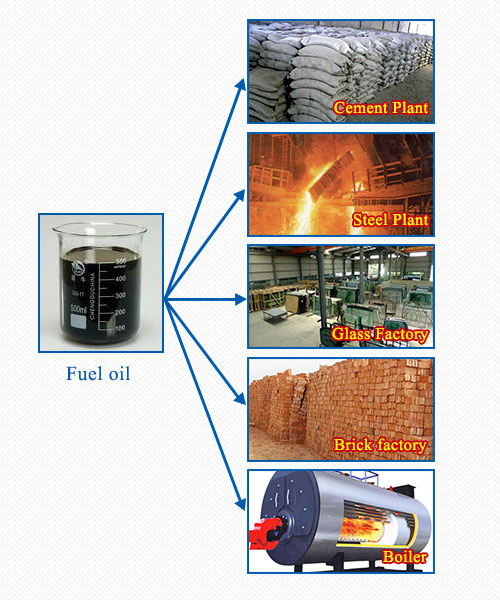

Used tyre pyrolysis plant final product application

Fuel oil from waste tyre are used in below industries
A.power plant factory
B.glass factory
C.cement factory
D.ceramic fatory
E.aluminum factory
F.boiler factory
G.central heating factory
H.painting factory
1.A. Waste plastics, Used bottles,used tyres, used bags, farming waste , other
B.Medical waste
C.oil sludge , waste oil ,black oil ,oily solid
D.other living waste
